Autopilot

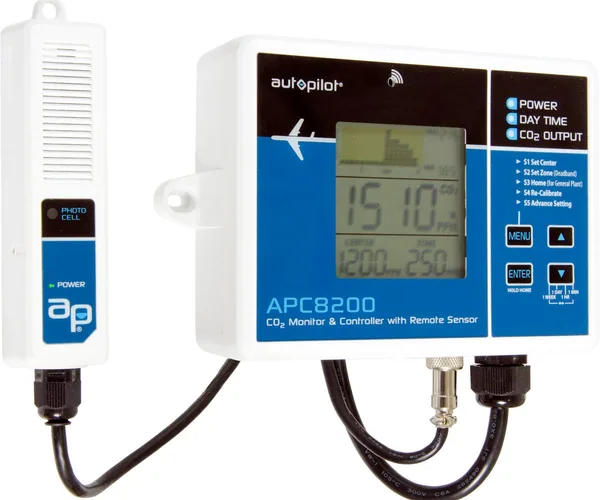

Autopilot CO2 Monitor & Controller w/15' Remote Sensor
SKU: APC8200
$224.99
$323.54
SALE Available to Order (236 available)
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm same-day pickup.
Description
Autopilot APC8200 CO2 Monitor & Controller with Memory offers a simple and affordable way to control, monitor and record CO2 levels over an adjustable period of time. Trace your room's CO2 levels over minutes, hours, or up to 7 days with this easy-to-use controller. The APC8200 also boasts a fully customizable CO2 setpoint and deadband. Adjust and review your CO2 levels when you want to and how you want to. The APC8200's memory feature gives growers a real edge in fine-tuning the grow room environment. Optimize your CO2 levels with this precision controller from Autopilot!
FEATURES:
- Fully customizable ppm deadband and CO2 setpoint allow flexibility in programming
- Trend Chart records CO2 levels per minute, hour, day and week for accurate analysis of CO2 distribution
- Adjustable Trend Chart Zoom levels let you trace your ppm levels
- Remote CO2 sensor probe w/photocell & 15' data cable lets you take readings from proper grow room locations
- 2-Channel Low Drift NDIR Sensor precisely reads CO2 ppm levels
- Green LED identification lights inform you of the unit's status at all times
APC8200 Error Codes:
| Fault Icon | Description of the fault | Suggested Actions |
| Err4 | IR lamp error | Please reconnect power adapter, if the Err4 still appears, please contact the service department. |
| Err5 | Internal parameter error | Please reconnect power adapter, if the Err5 still appears, please contact the service department. |
| Err6 | Sensor unit Connect Error | Please reconnect sensor unit and redo power on, if the Err6 still appears, please contact the service department. |
| Err7 | temperature or humidity error | Please turn off power adapter, and put the device in a dry place more than 12 hours. |
| Err8 | Internal calculate error | Please reconnect power adapter, if the Err6 still appears, please contact the service department. |
- Genuine Autopilot product
- Brand: Autopilot
- Category: Climate Control > Controllers & Monitors
- Listed weight: 2.3 lbs
- Listed dimensions: 9.7 x 7.5 x 3.9 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUAPC8200
BrandAutopilot
UPC10638104020708
Weight2.3 lbs
Dimensions9.7 x 7.5 x 3.9 in
Frequency60
Warranty3 Year
Shipping Weight (Lbs)2.3
Volume (Cu Ft)0.16
Sensor Type2-Channel Low Drift NDIR
Day/Night SensorBuilt-in (photocell on remote probe)
Remote Sensor Cable15' data cable
Data LoggingPer minute, hour, day, week (up to 7 days)
CO2 SetpointFully customizable with adjustable deadband
Status IndicatorsGreen LED identification lights
AlarmAudible (high/low CO2)
Package Dimensions9.65"L × 7.48"W × 3.94"H
ColorGreen
