TrolMaster
TrolMaster 110V Control Board (OA6-110)
SKU: TRCOA6110
$109.72
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Quick answer
TrolMaster 110V Control Board (OA6-110) should be matched to canopy footprint, mounting height, dimming needs, crop stage, heat load, and controller compatibility.
Best fitGrow spaces where the fixture footprint, power draw, and hanging height fit the actual canopy.
Check before orderingConfirm voltage, plug type, controller compatibility, dimensions, hanging hardware, and room heat management.
Grower tipStart with conservative intensity, then raise output as plants respond. Airflow and distance matter as much as wattage.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description
TrolMaster (OA6-110) 110V Control Board for Aqua-X System

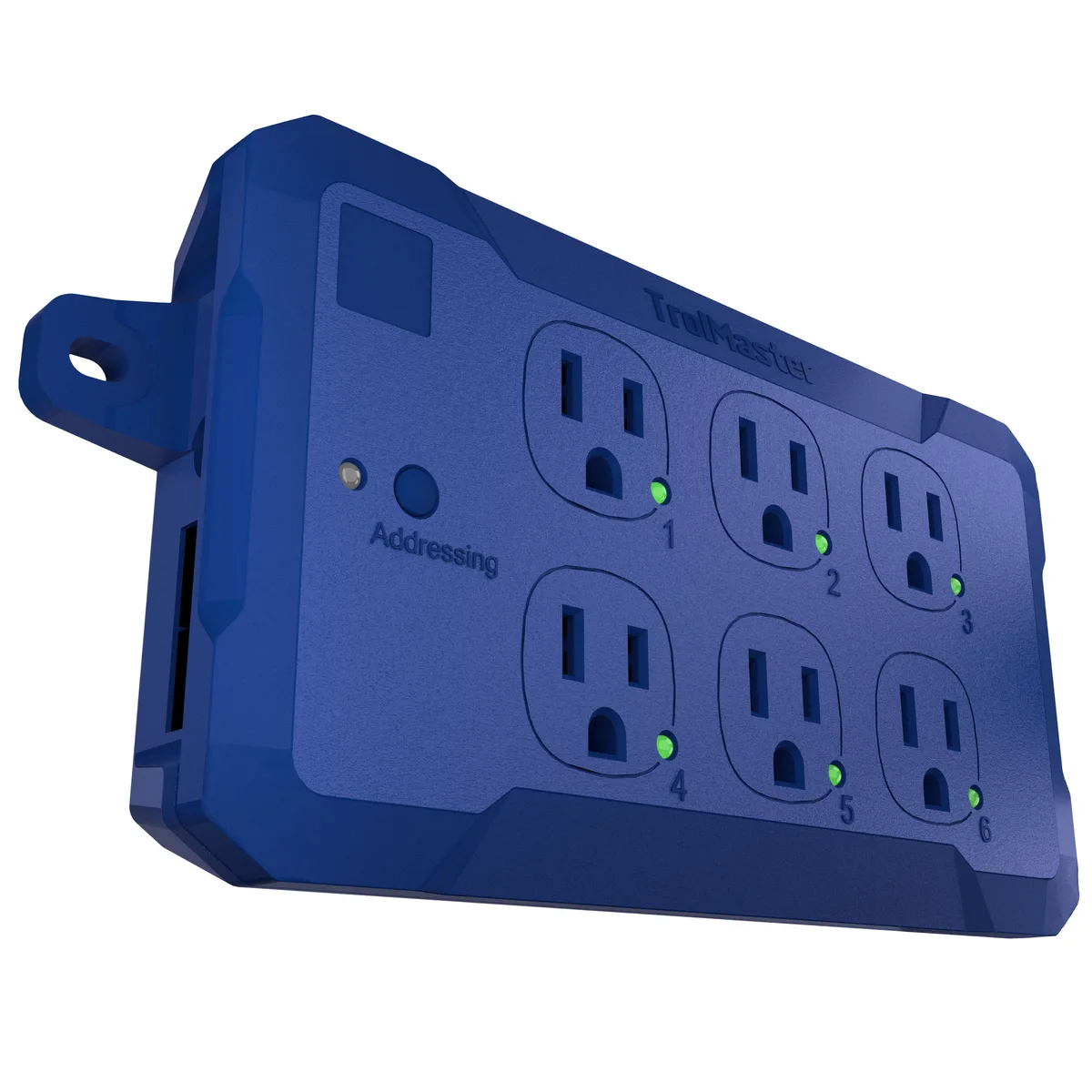

TrolMaster's OA6-110 control board is designed to control small 110V pump or solenoid valves (less than 1.5 amps). The OA6-110 has 6 separately controlled 120 volt outlets. Each has an LED indicator to show whether the outlet is On or Off. Up to (5) of the OA6-110 modules can be connected to a single Aqua-X.
Features & Benefits:
Package Content:
Specification:
TrolMaster's OA6-110 control board is designed to control small 110V pump or solenoid valves (less than 1.5 amps). The OA6-110 has 6 separately controlled 120 volt outlets. Each has an LED indicator to show whether the outlet is On or Off. Up to (5) of the OA6-110 modules can be connected to a single Aqua-X.
Features & Benefits:
- LED Power Indicator
- Addressing Button
- 6 Individually-Controlled 110V Outputs
- Individual LED Indicator for Each Output
- Double RJ12 Cable Sockets for Easy Connectivity
Package Content:
- 1 x 110V Control Board
- 1 x 16ft RJ12 Cable
Specification:
- Input Voltage:120 VAC
- Max Input Current:9A
- Max Output Voltage/Current:120VAC/1.5A per Output
- Working Temperature:32°-122°F
- Working Humidity:≤90%
- Packaging Dimensions:275mm(L) x 164mm(W) x 62mm(H)
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Meters & Monitoring > Controllers & Monitors
- Listed weight: 1.962115716 lbs
- Listed dimensions: 8 x 6 x 6 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCOA6110
BrandTrolMaster
UPC6970207970571
Weight1.96 lbs
Dimensions8 x 6 x 6 in
Sold Aseach
Voltage110V
Sensor TypesTemperature, Humidity
Max Amps9A
TypeModule
Size1x16 ft
Amperage1.5A
