TrolMaster 240V Program Device Station (DSP-2)
SKU: TRCDSP2
$92.40
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Quick answer
TrolMaster 240V Program Device Station (DSP-2) should be matched to canopy footprint, mounting height, dimming needs, crop stage, heat load, and controller compatibility.
Best fitGrow spaces where the fixture footprint, power draw, and hanging height fit the actual canopy.
Check before orderingConfirm voltage, plug type, controller compatibility, dimensions, hanging hardware, and room heat management.
Grower tipStart with conservative intensity, then raise output as plants respond. Airflow and distance matter as much as wattage.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description

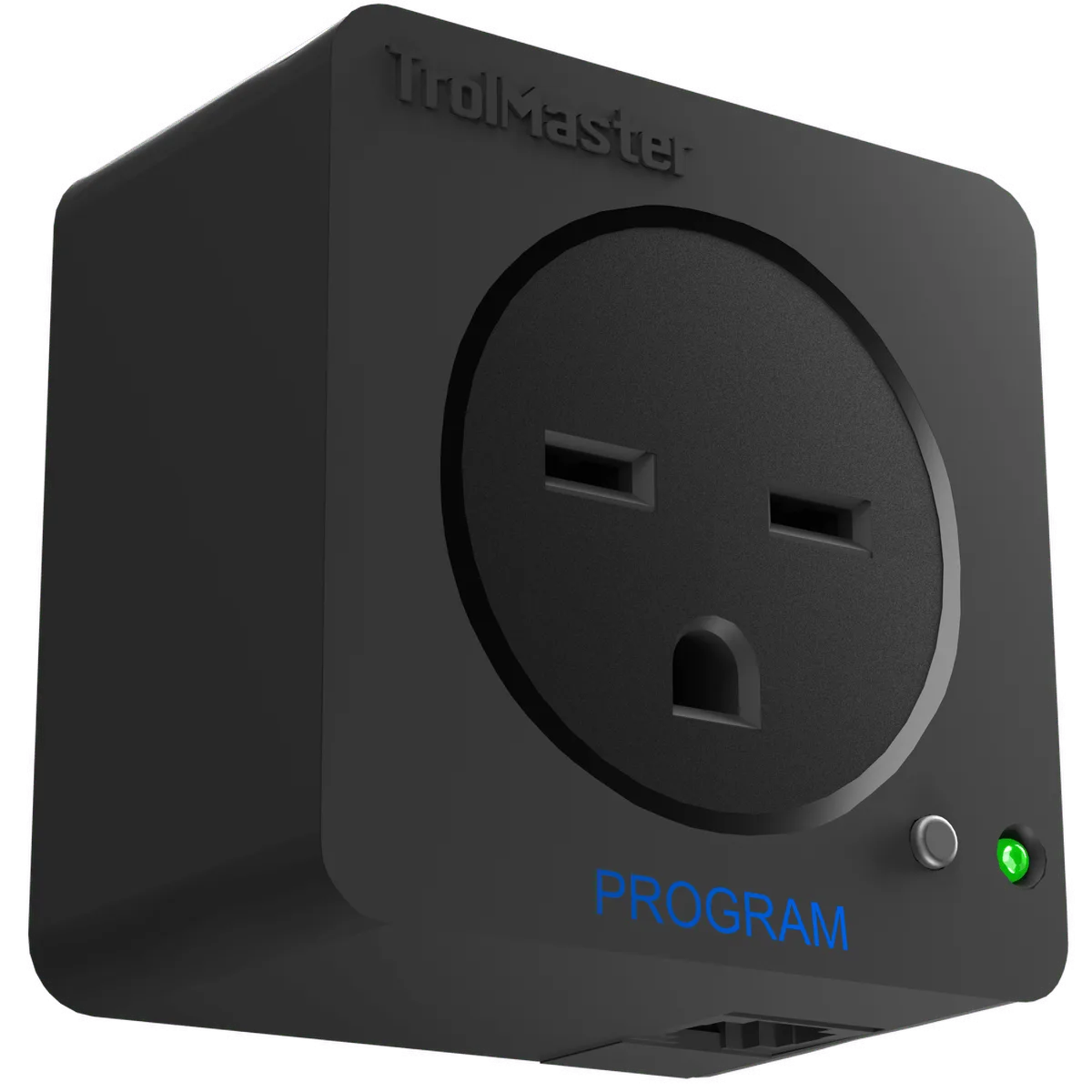

TrolMaster(DSP-2) 240V Hydro-X Program Device Station
The TrolMaster DSP-2 program device module (timer module) works as a multi-function timer. The DSP-2 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x. Any device that is 10-amps at 240 volts or less can be controlled by the DSP-2.
The DSP-2 works as a multi-function irrigation timer on the Aqua-X. The DSP-2 can be set to activate at a specific time(s) of day or night and configured to function as a recycling timer with or without a maximum number of cycles setting. The DSP-2 can also be used as a “master pump” controller on the Aqua-x. A master pump would be plugged into the DSP-2. When connected to the Aqua-x 24vac module, the DSP-2 will automatically turn on the pump when any of the 24vac irrigation zones are activated.
Features & Benefits:
Package Content:
Specification:
The TrolMaster DSP-2 program device module (timer module) works as a multi-function timer. The DSP-2 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x. Any device that is 10-amps at 240 volts or less can be controlled by the DSP-2.
The DSP-2 works as a multi-function irrigation timer on the Aqua-X. The DSP-2 can be set to activate at a specific time(s) of day or night and configured to function as a recycling timer with or without a maximum number of cycles setting. The DSP-2 can also be used as a “master pump” controller on the Aqua-x. A master pump would be plugged into the DSP-2. When connected to the Aqua-x 24vac module, the DSP-2 will automatically turn on the pump when any of the 24vac irrigation zones are activated.
Features & Benefits:
- LED Indicator
- Attaching Plug
- RJ12 Cable Socket
- Address Assignment
- Plug & Play
Package Content:
- 1 x Device Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specification:
- Input Voltage: 100~240 VAC, 50/60Hz
- Output Current: 10A
- Output Voltage: 100~240 VAC, 50/60Hz
- Working Temperature: 32-122°F
- Working Humidity: ≤90%
- Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)
- G.W. per pack: 0.34kgs
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Climate Control > Controllers & Monitors
- Listed weight: 0.73 lbs
- Listed dimensions: 24 x 24 x 6 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCDSP2
BrandTrolMaster
UPC6970207971745
Weight0.73 lbs
Dimensions24 x 24 x 6 in
Sold Aseach
Voltage24vac
Sensor TypesTemperature, Humidity
Max Amps10A
Compatible WithHydro-X (HCS-1), Hydro-X Pro (HCS-2)
ModelDSP-2
TypeModule/Station
Size1x16 ft
