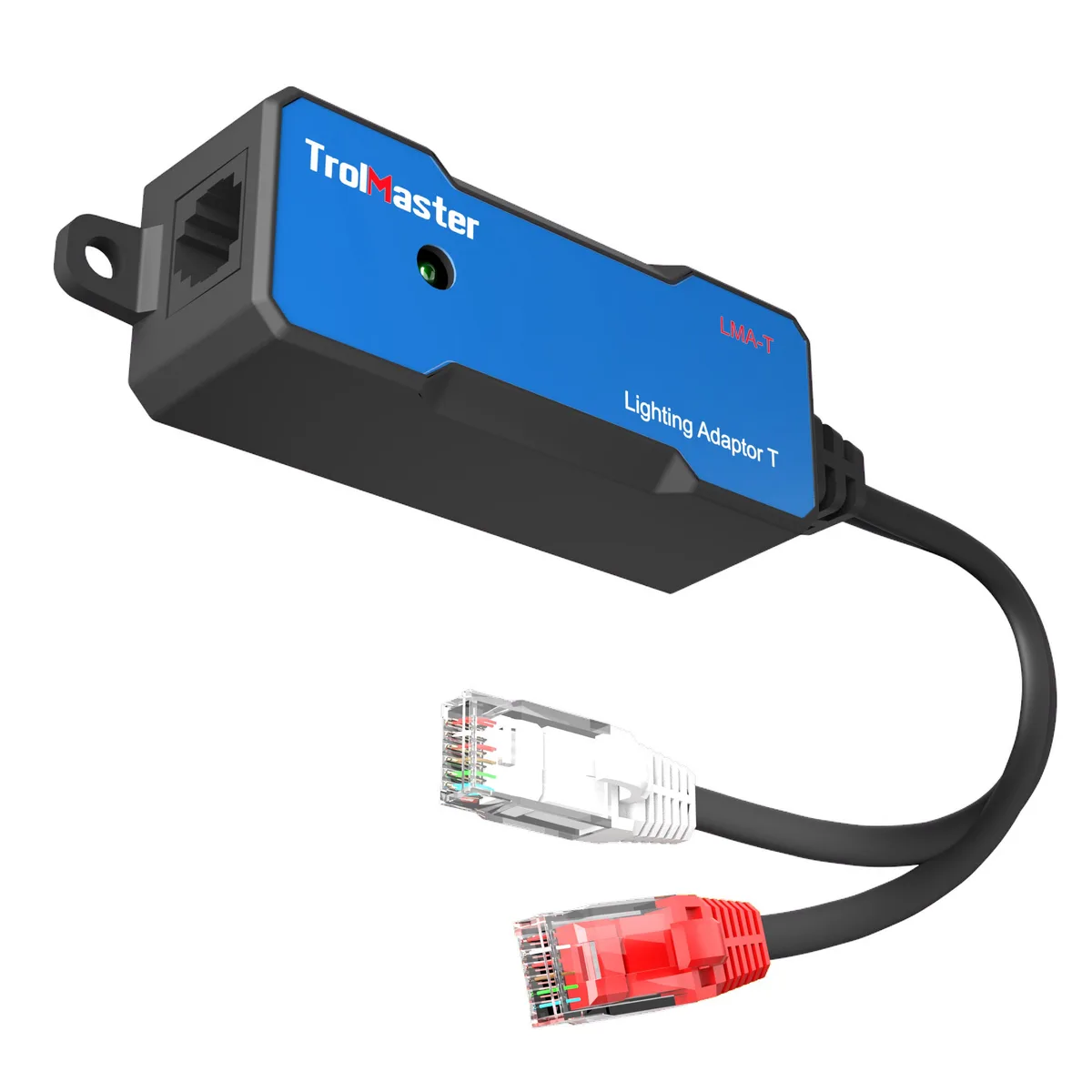

TrolMaster Lighting Control Adapter T, for Controlling ThinkGrow LED (LMA-T)
SKU: TRCLMAT
$95.55
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Quick answer
TrolMaster Lighting Control Adapter T, for Controlling ThinkGrow LED (LMA-T) should be matched to canopy footprint, mounting height, dimming needs, crop stage, heat load, and controller compatibility.
Best fitGrow spaces where the fixture footprint, power draw, and hanging height fit the actual canopy.
Check before orderingConfirm voltage, plug type, controller compatibility, dimensions, hanging hardware, and room heat management.
Grower tipStart with conservative intensity, then raise output as plants respond. Airflow and distance matter as much as wattage.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description
TrolMaster (LMA-T) Lighting Adapter-T for Hydro-X System
TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.
The LMA-T works specifically with the ThinkGrow LED systems to provide two channel control, which allows separate control for full-spectrum and deep red output levels on the ThinkGrow LEDs.
The LMA-T simply connects to the lighting control ports Line 1 and Line 2 on the HCS-1. Once connected, the user can then set individual ON and OFF times and the dimming settings for the full spectrum LEDs and also for the deep red LEDs.
The LMA-T then is connected to the RJ-type lighting control cables where each of the LEDs are connected back to the controller in a daisy-chain configuration using plug-and-play connections.
One adaptor could run up to 256 LEDs.
* Convert RJ12 to Water Proof Connector Cable included.
Features & Benefits:
Package Content:
Specification:
TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.
The LMA-T works specifically with the ThinkGrow LED systems to provide two channel control, which allows separate control for full-spectrum and deep red output levels on the ThinkGrow LEDs.
The LMA-T simply connects to the lighting control ports Line 1 and Line 2 on the HCS-1. Once connected, the user can then set individual ON and OFF times and the dimming settings for the full spectrum LEDs and also for the deep red LEDs.
The LMA-T then is connected to the RJ-type lighting control cables where each of the LEDs are connected back to the controller in a daisy-chain configuration using plug-and-play connections.
One adaptor could run up to 256 LEDs.
* Convert RJ12 to Water Proof Connector Cable included.
Features & Benefits:
- LED Indicator
- Plug & Play
Package Content:
- 1x LMA-T
- 1x RJ12 to customized waterproof connector
- 1x ECS-9 cable
Specification:
- Output Voltage: 0~11.5V
- Maximum Current: 0.2A
- Working Temperature: 32-122°F
- Working Humidity: ≤90%
- Packaging Dimensions: 156mm(L) x 83mm(W) x 30mm(H)
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Grow Lights > Controllers & Timers
- Listed weight: 0.3748 lbs
- Listed dimensions: 24 x 24 x 6 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCLMAT
BrandTrolMaster
UPC6970207971257
Weight0.37 lbs
Dimensions24 x 24 x 6 in
Sold Aseach
Sensor TypesTemperature, Humidity
Max Amps0.2A
Compatible WithHydro-X (HCS-1)
TypeAccessory
ColorRed
FeaturesWaterproof
Voltage11.5V
Amperage0.2A
