Dosatron 26gpm Injector D6mz2vfii 0.2-2.0% With Bypass

Dosatron 26gpm Injector D6mz2vfii 0.2-2.0% With Bypass

SKU: DOSD6MZ2BPVFII
$1,409.99
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.

Quick answer

Dosatron 26gpm Injector D6mz2vfii 0.2-2.0% With Bypass should be matched to your growing media, water source, crop stage, feeding style, and pH/EC monitoring plan.

Best fitGrowers building a nutrient program around a specific media type, water source, and crop stage.
Check before orderingConfirm the listed SKU, dimensions, and ship weight match the version you want before checkout.
Grower tipStart from the label or feed chart, measure pH and EC, and increase strength only after plants show they are handling it.

Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.

Description

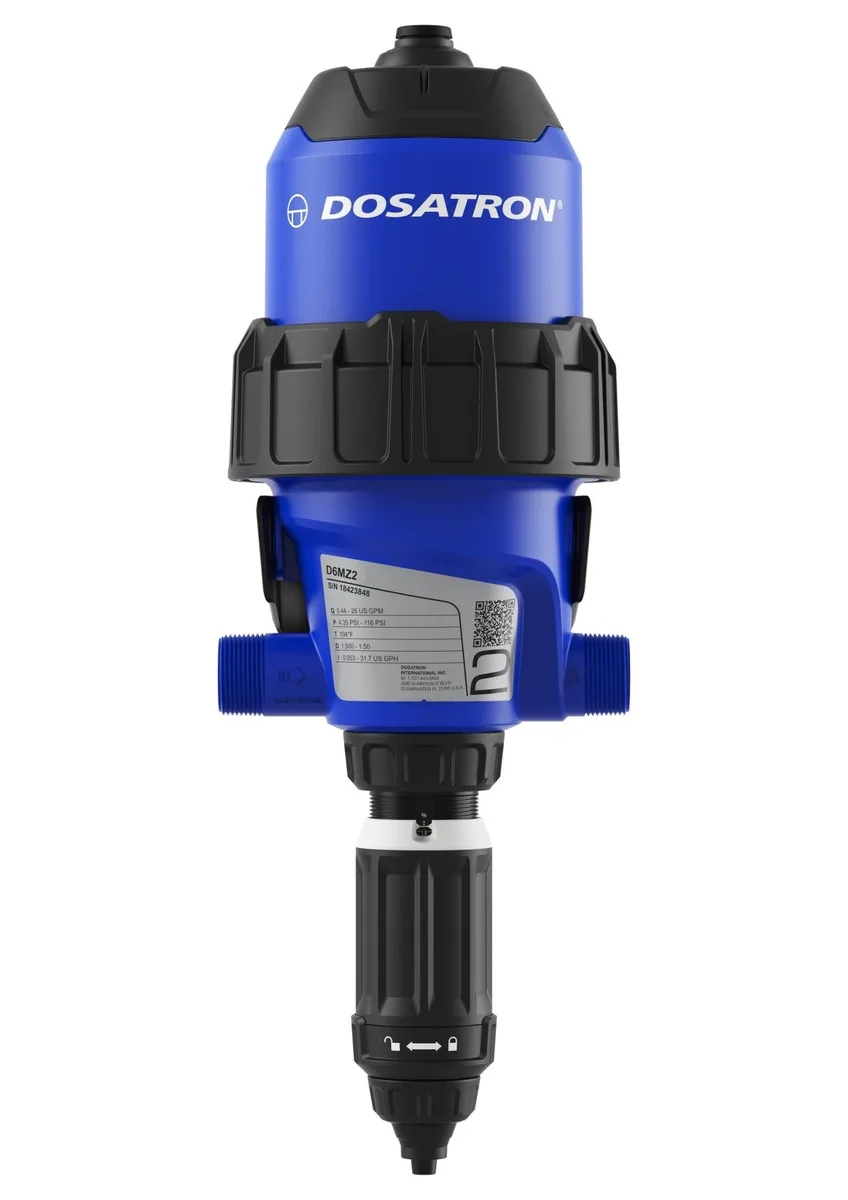

The Dosatron D6MZ2 is a high-flow water-powered chemical injector designed for large greenhouse, nursery, and commercial growing operations requiring flow rates up to 26 GPM.

Features inlet injection technology for enhanced mixing consistency.

Key Specifications: • Flow Rate: 0.44–26 GPM (1.7–98 LPM) • Injection Ratio: 1:500 to 1:50 (0.2%–2%) • Operating Pressure: 4.3��116 PSI (0.3–8 bar) • Connection Size: 1-1/4" NPT • Housing Material: Polypropylene • Seal Material: Viton (acidic chemistry compatible) • Dimensions: 25" x 9" x 8" Included: Mounting bracket, 6' clear suction tube, weighted strainer, bypass valve, and quick start guide.

Compatible With: Fertilizers, pH adjusters, sanitizers, fungicides, pesticides.

Replaces the older D45-20 GPM injector with higher pressure tolerance and increased flow capacity.

Features: High-performance locking ring prevents misalignment of dosing settings.

Internal motor sleeve facilitates easy servicing.

Water-powered — no electricity required.

Verify tubing size, connection type, pressure range, flow rate, reservoir layout, and replacement-part compatibility before adding it to an irrigation build.

Weight: 8 lbs.

Dimensions: 25 x 9 x 8 in.

  • Valve
  • Genuine Dosatron product
  • Brand: Dosatron
  • Category: Hydroponics & Irrigation > Dosers & Injectors
  • Listed weight: 8 lbs
  • Listed dimensions: 25 x 9 x 8 in

Specifications

SKUDOSD6MZ2BPVFII
BrandDosatron
UPC
Weight8 lbs
Dimensions25 x 9 x 8 in
Sold Aseach
TypeValve
GPM26 GPM
Pressure116 PSI
TypeWater-Powered Chemical Injector
Flow Rate Gpm26 GPM
Injection Ratio1:500 to 1:50
Seal TypeViton
Pressure Range0.3–85 PSI
Power SourceWater pressure (no electricity)
Bypass SwitchYes
ColorClear
MaterialPolypropylene
