Dosatron D20S

Dosatron D20S

SKU: DS100GPMADJRAT
$4,365.99
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.

Quick answer

Dosatron D20S should be matched to your growing media, water source, crop stage, feeding style, and pH/EC monitoring plan.

Best fitGrowers building a nutrient program around a specific media type, water source, and crop stage.
Check before orderingConfirm the listed SKU, dimensions, and ship weight match the version you want before checkout.
Grower tipStart from the label or feed chart, measure pH and EC, and increase strength only after plants show they are handling it.

Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.

Description

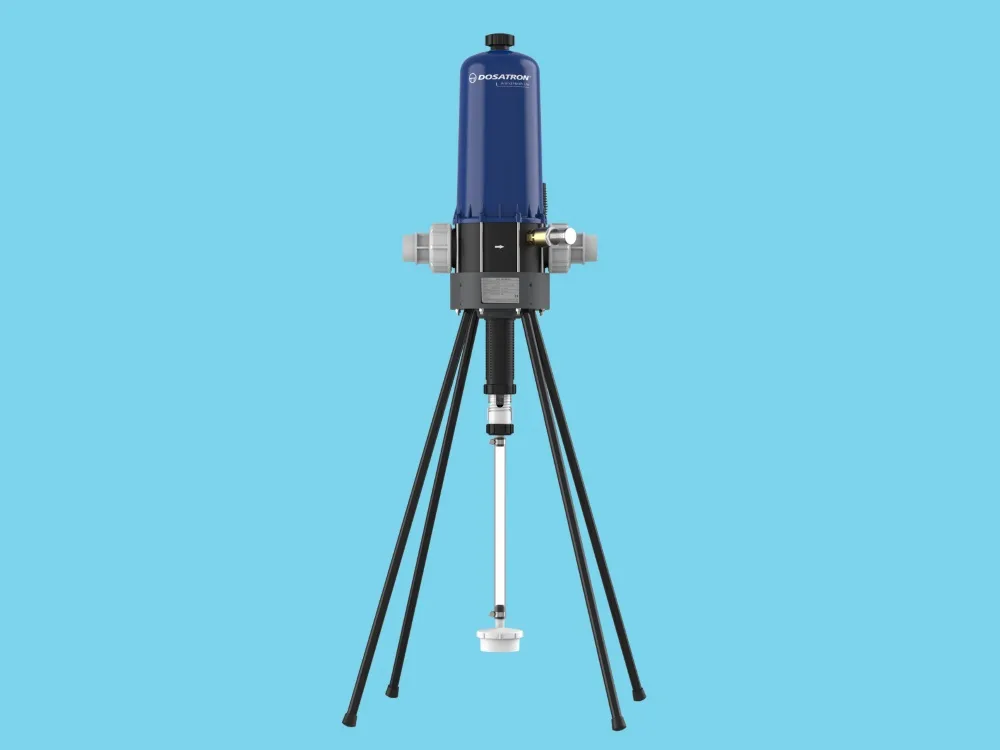

Dosatron D20S (D20SVFII)

Precise, simple and reliable are words that describe D20S. Installed directly in the water supply line, the Dosatron operates by using water pressure as the power source. The water activates the Dosatron, which takes up the required percentage of concentrate. Inside the Dosatron, the concentrate is mixed with the water. The water pressure forces the solution downstream. The dose of concentrate will be directly proportional to the volume of water entering the Dosatron, regardless of variations in flow or pressure which may occur in the main line.

Accessories include the following:

  • Mounting bracket
  • Manual bypass
  • Suction hose with strainer and weight
  • Operating manual
  • Set of legs
  • Suction hose with strainer
  • Vacuum breaker
  • Recommended: 200 mesh filter, check valve, pressure regulator, flow restrictor.


Technical Specifications:

  • Weight: 47 lbs
  • Pipe Size: 2 inch NPT
  • Dimensions: 55 inch x 15 inch (With legs) 42 inch x 15 inch; (No legs)
  • GPM: 5.00 to 100.0 GPM; 18.9 to 379.0 LPM
  • PSI: 2.00 to 120.0 PSI
  • Ratio: 1:500 to 1:50
  • Percentage: 0.20 to 2.00%
  • Tubing
  • Genuine Dosatron product
  • Brand: Dosatron
  • Category: Hydroponics & Irrigation > Dosers & Injectors
  • Listed weight: 47 lbs
  • Listed dimensions: 17.0 x 38.0 x 13.0 in

Specifications

SKUDS100GPMADJRAT
BrandDosatron
UPC850019843224
Weight47.00 lbs
Dimensions17.0 x 38.0 x 13.0 in
Sold Aseach
TypeTubing
GPM100.0 GPM
Size2"
Pressure120.0 PSI
TypeWater-Powered Chemical Injector
Flow Rate Gpm0 GPM
Injection Ratio1:500 to 1:50
Seal TypeViton
Pressure Range0.3–85 PSI
Power SourceWater pressure (no electricity)
Bypass SwitchYes
MaterialMesh
ShippingOversized shipping review
