OPTOTRONIC® P7 Series LED Driver OT600/UNV/5A6/2DIM/A/P7 600W
Quick answer
OPTOTRONIC® P7 Series LED Driver OT600/UNV/5A6/2DIM/A/P7 600W should be matched to canopy footprint, mounting height, dimming needs, crop stage, heat load, and controller compatibility.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description

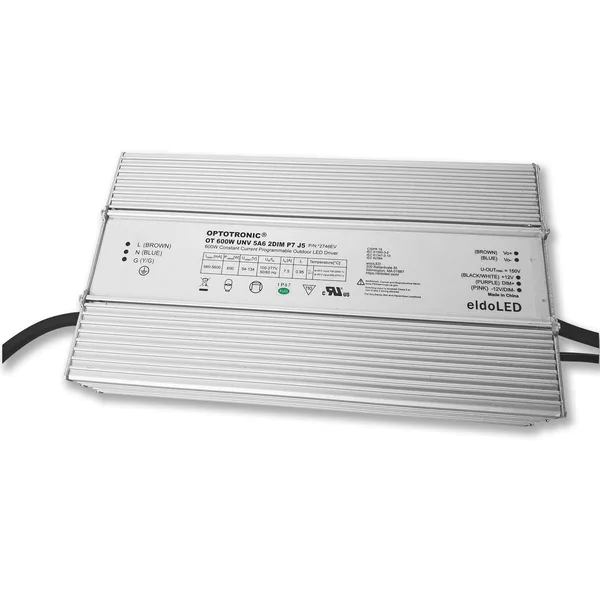

Osram Optotronic 600W LED Driver
The Osram Optotronic 600W driver is a high-efficiency replacement or DIY power solution designed to run four compatible HLG Quantum Boards per driver.
This driver is suitable for use with:
-
(4) QB288 Rspec Quantum Boards
-
(4) QB288 Bspec Quantum Boards
-
(4) QB648 Diablo Quantum Boards
When paired correctly, this driver configuration is compatible with fixtures such as the HLG 600 Rspec, HLG 600 Bspec, and HLG 650 Diablo.
*Please note, if purchasing this power supply for a DIY 600 kit, this driver would require re-wiring your boards to Series Parallel
Ideal For:
-
DIY builds
-
Replacement driver projects
-
Custom fixture configurations
Engineered for reliable output and consistent performance, the Osram Optotronic 600W driver delivers the power needed to operate four HLG Quantum Boards in a properly configured system.
Driver datasheet available here.
General Information
|
Item Number |
57341 |
|
Type |
Constant Current |
|
Output Power |
600W (Max.) |
|
Programming Tool |
57568 |
|
Programmable Features |
Output Current Dim-to-Off AstroDIM Thermal Protection Constant Lumen Output |
Environmental Specifications
|
Ambient Operating Temperature |
-40ºC to 55ºC |
|
Case Temperature (Tc) |
90ºC (max) 75ºC (Warranty) |
|
Max. Storage Temp |
-40ºC to 85ºC |
|
Max. Relative Humidity (%) |
95% |
|
Surge Protection |
5KV line-line 10KV line-earth |
|
IP Rating |
IP67 |
|
UL Rating |
Dry, Damp, & Wet |
|
UL File number |
E320395 |
|
EMI Compliance – CCC |
GB/T 17743 GB 17625.1 |
|
EMI Compliance – CE |
EN 55015 EN 61000-3-2 EN 61000-3-3 EN 61000-4-2,3,4,5,6,11 |
Electrical Specifications
Input
|
Input Voltage (VAC) |
120V-277V (+/- 10%)1 |
|
|
Frequency Range (Hz) |
50 – 60 Hz (+/- 10%) |
|
|
Input Current (A) |
4.5A Max. |
|
|
Inrush Current (Apk) @ 230V |
75A |
|
|
|
120V |
277V |
|
Efficiency @ Full load |
91% |
93% |
|
THD @ Full Load |
<10% |
<15% |
|
Power Factor @ Full Load |
>0.97 |
>0.90 |
1 - Driver rated for 100-277Vac
Output
|
Output Current (mA) |
2800 - 5600 mA (Default: 5600 mA) |
|
Output Voltage (VDC) |
54 - 134 VDC |
|
Output Ripple Current |
< 10% |
|
Max. Output Power (W) |
600W |
|
LED Power-Up Time |
< 1sec Max. < 0.5sec Typical |
|
Load Regulation |
+/-3% |
|
Line Regulation |
+/-1% |
|
Over Voltage Protection |
Yes, non-latching |
|
Output Short-Circuit |
Yes, non-latching |
|
Over Temperature Protection |
Yes, non-latching |
Dimming
|
Dimming Control |
0 – 10V |
|
Dimming Range |
10-100% |
|
Dimming Type |
Pulse-Width Modulation |
|
Source/Sink Current |
0.4mA Max. |
|
Dim-to-Off OFF/ON Threshold |
0.5V/0.7V |
|
Dim-to-Off Standby Power |
< 0.5W |
Auxiliary Output
|
Output Voltage (Vdc) |
12V |
|
Output Power (W) |
3.6W Max |
|
Voltage Regulation |
+/- 10% |
