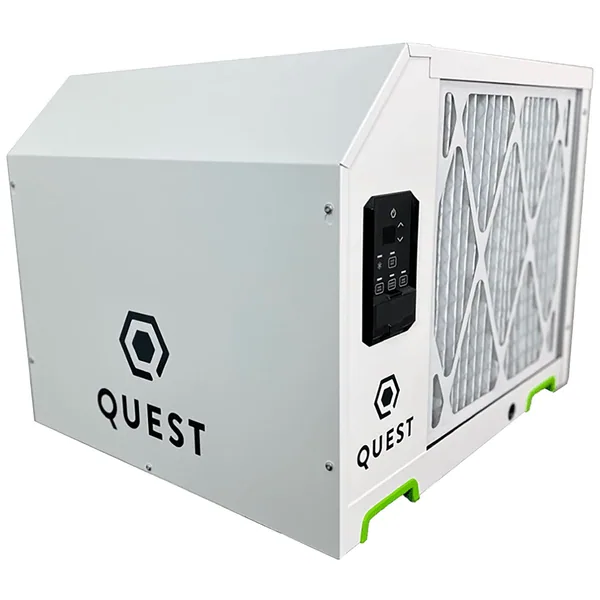

Quest 225 208/230V Overhead Dehumidifier A2L
Quest 225 208/230V Overhead Dehumidifier A2L - Image 1Quest 225 208/230V Overhead Dehumidifier A2L - Image 2

Quest 225 208/230V Overhead Dehumidifier A2L

SKU: QUE4046100
$3,799.95
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Questions? Call 419-725-2450
Trusted Since 2009

Quick answer

Quest 225 208/230V Overhead Dehumidifier A2L should be matched to room volume, heat and moisture load, target conditions, placement, electrical service, and controller needs.

Best fitTents, rooms, or greenhouses where airflow, temperature, or humidity equipment must fit the actual environmental load.
Check before orderingConfirm voltage, dimensions, duct or drain setup, clearances, noise, controller compatibility, and service access.
Grower tipRoom size alone may not determine capacity. Plant count, lighting heat, irrigation, and outside conditions also matter.

Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.

Description

Quest 225 208/230V Overhead Dehumidifier A2L — Quest Climate Commercial Dehumidifier KEY PERFORMANCE SPECIFICATIONS: • Water Removal: 225 pints/day @ 80°F/60% RH • Water Removal: 130 pints/day @ 75°F/50% RH • Energy Efficiency: 7.6 pints/k Wh @ 80°F/60% RH • Energy Efficiency: 4.7 pints/k Wh @ 75°F/50% RH • Energy Factor: 3.6 L/k Wh • Airflow: 630 CFM @ 0.0" static pressure ELECTRICAL: • Voltage: 208-230V, 60 Hz • Current Draw: 6.1A @208V / 5.5A @230V • Power: 1230 Watts • Power Cord: 14/3 SJTW (6') NEMA 6-15P HEAT OUTPUT: • Total BTU: 14,400 • Heat of Condensation: 10,200 BTU • Motor Load: 4,200 BTU PHYSICAL: • Dimensions: 26.8" L × 23.6" W × 20.9" H • Weight: 130 lbs ENVIRONMENTAL: • Operating Temperature: 56°F – 95°F • Refrigerant: R-454B (3 lb 4 oz) • Air Filter: MERV 13 • Filter Size: 18" × 18" × 2" INSTALLATION & DRAINAGE: • Drain: 3/4" Threaded NPT • Installation: Freestanding or overhead (3/8" threaded rod) • Technology: Patented M-CoRR™ (multi-coil refrigeration) • Blower: Single Speed Impeller • Warranty: 5-Year Limited • Engineered & Assembled: Madison, Wisconsin.

Weight: 130 lbs.

Dimensions: 26.8 x 23.6 x 20.9 in.

  • Dehumidifier
  • 1230W wattage output
  • Genuine Quest product
  • Brand: Quest
  • Category: Climate Control > Dehumidifiers
  • Listed weight: 130 lbs

Specifications

SKUQUE4046100
BrandQuest
UPC810017961573
Weight130 lbs
Dimensions32 x 24 x 20 in
Shipping Weight130 lbs
Sold Aseach
TypeDehumidifier
BTU10200 BTU
Pints/Day225 pints/day
CFM630 CFM
Voltage230V
Amps6.1A
MERV RatingMERV 13
Filter Dimensions18" x 18" x 2"
Wattage1230W
Capacity Pints Day225 Pints/Day @ 80°F/60% RH
Efficiency7.6 Pints/kWh
Amperage5.5 A @230V / 6.1 A @208V
Power Watts1,230 W
Btu Total14,400 BTU
Btu Heat Of Condensation10,200 BTU
Btu Motor Load4,200 BTU
Cfm630 CFM
Operating Temp56°F – 95°F
Voltage208-230 V
Merv RatingMERV 13
Air Filter Dimensions18" x 18" x 2"
RefrigerantR454B (3 lb 4 oz)
Drain Port3/4" Threaded NPT
Power Cord14/3 SJTW (6 ft) / NEMA 6-15P
Warranty5 Year Limited
Part Number4046100
Dehumidifier TypeRefrigerant
Specs Sourcequestclimate.com
Capacity3.6 L
ShippingOversized shipping review
