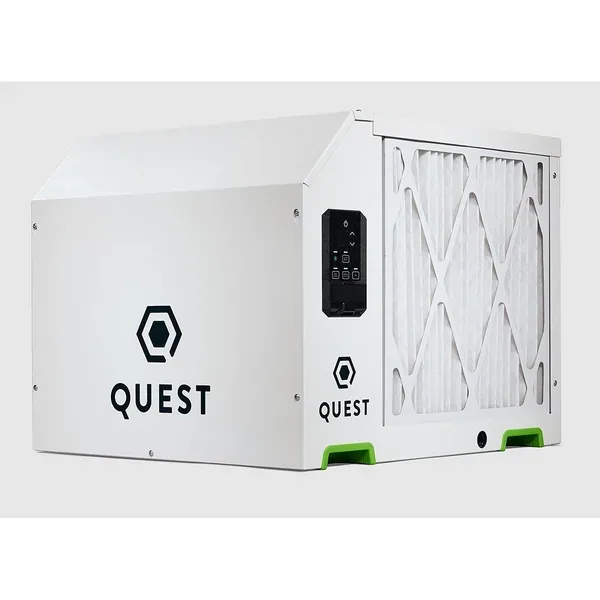

Quest 506 208/230V Overhead Dehumidifier A2L
Quest 506 208/230V Overhead Dehumidifier A2L - Image 1Quest 506 208/230V Overhead Dehumidifier A2L - Image 2

Quest 506 208/230V Overhead Dehumidifier A2L

SKU: QUE4046300
$8,829.95
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Questions? Call 419-725-2450
Trusted Since 2009

Quick answer

Quest 506 208/230V Overhead Dehumidifier A2L should be matched to room volume, heat and moisture load, target conditions, placement, electrical service, and controller needs.

Best fitTents, rooms, or greenhouses where airflow, temperature, or humidity equipment must fit the actual environmental load.
Check before orderingConfirm voltage, dimensions, duct or drain setup, clearances, noise, controller compatibility, and service access.
Grower tipRoom size alone may not determine capacity. Plant count, lighting heat, irrigation, and outside conditions also matter.

Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.

Description

Quest 506 208/230V Overhead Dehumidifier A2L — Quest Climate Commercial Dehumidifier KEY PERFORMANCE SPECIFICATIONS: • Water Removal: 500 pints/day @ 80°F/60% RH • Water Removal: 320 pints/day @ 75°F/50% RH • Energy Efficiency: 9.2 pints/k Wh @ 80°F/60% RH • Energy Efficiency: 6.8 pints/k Wh @ 75°F/50% RH • Energy Factor: 4.4 L/k Wh • Airflow: 1150 CFM @ 0.0" static pressure ELECTRICAL: • Voltage: 208-230V • Current Draw: 9.9A @230V / 10.9A @208V • Power: 2250 Watts • Power Cord: 12/3 SJTW 20A (6') NEMA 6-20P HEAT OUTPUT: • Total BTU: 30,500 • Heat of Condensation: 22,800 BTU • Motor Load: 7,700 BTU PHYSICAL: • Dimensions: 44.8" L × 29.0" W × 27.4" H • Weight: 280 lbs ENVIRONMENTAL: • Operating Temperature: 56°F – 95°F • Refrigerant: R-454B (3 lb 14 oz) • Air Filter: MERV 13 • Filter Size: 18" × 20" × 2" INSTALLATION & DRAINAGE: • Drain: 3/4" Threaded NPT • Installation: Freestanding or overhead (3/8" threaded rod) • Technology: Patented M-CoRR™ (multi-coil refrigeration) • Blower: Variable Speed EC Motor • Warranty: 5-Year Limited • Engineered & Assembled: Madison, Wisconsin.

Weight: 280 lbs.

Dimensions: 44.8 x 29 x 27.4 in.

  • Dehumidifier
  • 2250W wattage output
  • Genuine Quest product
  • Brand: Quest
  • Category: Climate Control > Dehumidifiers
  • Listed weight: 275 lbs

Specifications

SKUQUE4046300
BrandQuest
UPC810017961740
Weight280 lbs
Dimensions48 x 40 x 36 in
Shipping Weight280 lbs
Sold Aseach
TypeDehumidifier
BTU22800 BTU
Pints/Day500 pints/day
CFM1150 CFM
Voltage230V
Amps9.9A
Speed ControlVariable
MERV RatingMERV 13
Filter Dimensions18" x 20" x 2"
Wattage2250W
Capacity Pints Day506 Pints/Day @ 80°F/60% RH
Efficiency8.1 Pints/kWh
Amperage11 A
Power Watts2,700 W
Btu Total31,000 BTU
Btu Heat Of Condensation22,500 BTU
Btu Motor Load8,500 BTU
Cfm1,500 CFM
Operating Temp56°F – 95°F
Voltage220–240 VAC, 1 Phase, 60 Hz
Merv RatingMERV 13
Air Filter Dimensions18" x 20" x 2"
RefrigerantR410A (4 lb 8 oz)
Drain Port3/4" Threaded NPT
Power Cord12ga NEMA 6-20P (10 ft)
Warranty5 Year
Part Number4036600
Dehumidifier TypeRefrigerant
Specs Sourcequestclimate.com
Capacity4.4 L
ShippingFreight required
