TrolMaster 12-Output 24V Control Board for NFS-2 & NFS-3 (OAT-24)
SKU: TRCOAT24
$261.45
Each
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Quick answer
TrolMaster 12-Output 24V Control Board for NFS-2 & NFS-3 (OAT-24) should be chosen around the equipment it must run, the probes or readings needed, and the level of automation required.
Best fitGrowers matching controls, meters, dosing, or monitoring gear to an existing room or irrigation setup.
Check before orderingConfirm compatible probes, modules, cable lengths, app requirements, voltage, replacement parts, and calibration needs.
Grower tipIf you are matching this to existing equipment, call with the model numbers so compatibility can be checked first.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description

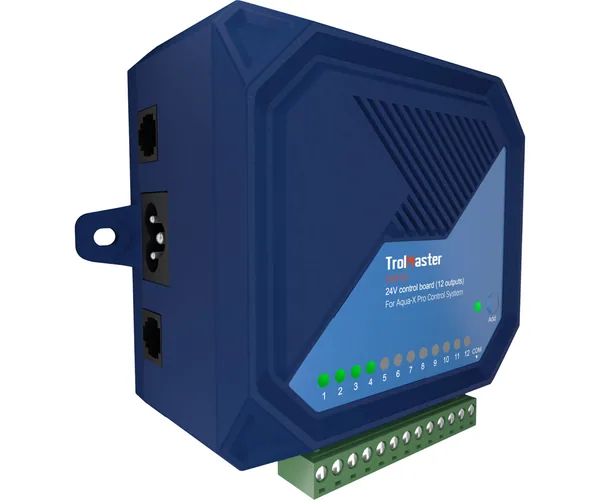

TrolMaster (OAT-24) 12 Outputs 24V Control Board
Trolmaster's OAT-24 module is specifically designed for the Aqua-X Pro Irrigation Control System. It features 12 individual 24V outputs that can control up to 12 individual 24-volt irrigation solenoids. By using multiple OAT-24 modules, the Aqua-X Pro Irrigation Control System can manage up to 600 individually controlled 24V valves. Each of the solenoid valves can be independently configured by the users with one of the five control modes. Feed by: Recycle, Schedule, Demand, Volume, or Auto-fill. The OAT-24 gives users the ability to easily manage irrigation schedules for multiple nutrients, rooms, and irrigation zones.
Features & Benefits:
12 Individuals Schedules Outputs
Package Content:
Specification:
Trolmaster's OAT-24 module is specifically designed for the Aqua-X Pro Irrigation Control System. It features 12 individual 24V outputs that can control up to 12 individual 24-volt irrigation solenoids. By using multiple OAT-24 modules, the Aqua-X Pro Irrigation Control System can manage up to 600 individually controlled 24V valves. Each of the solenoid valves can be independently configured by the users with one of the five control modes. Feed by: Recycle, Schedule, Demand, Volume, or Auto-fill. The OAT-24 gives users the ability to easily manage irrigation schedules for multiple nutrients, rooms, and irrigation zones.
Features & Benefits:
12 Individuals Schedules Outputs
Package Content:
- 1x OAT-24
- 1x 16ft RJ12 Cable
- 1x Power Cable
- 1x 13-pin Phoenix Type Connector
Specification:
- Input Voltage:100-240V, 50/60Hz
- Max Input Current:1.7A
- Max Output Voltage/Current:24VAC/0.5A per output
- Working Temperature:32°-122°F
- Working Environments:Temperature 32-122°F (0-50°C), Humidity ≤90%
- Package Dimensions:275mm(L) x 164mm(W) x 65mm(H)
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Meters & Monitoring > Controllers & Monitors
- Listed weight: 1.92 lbs
- Listed dimensions: 8 x 6 x 6 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCOAT24
BrandTrolMaster
UPC6970207972322
Weight1.92 lbs
Dimensions8 x 6 x 6 in
Price UnitEach
Sold Aseach
