TrolMaster 6 Outputs 24V Control Board (OA6-24)
SKU: TRCOA624
$100.28
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Trusted Since 2009
Quick answer
TrolMaster 6 Outputs 24V Control Board (OA6-24) should be chosen around the reading or equipment being monitored, accuracy range, probes, calibration, and automation needs.
Best fitGrowers matching meters, controls, dosing, or monitoring gear to an existing room or irrigation setup.
Check before orderingConfirm compatible probes, modules, cable lengths, app requirements, replacement parts, and calibration needs.
Grower tipFor compatibility questions, call with the existing equipment model numbers before ordering.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description

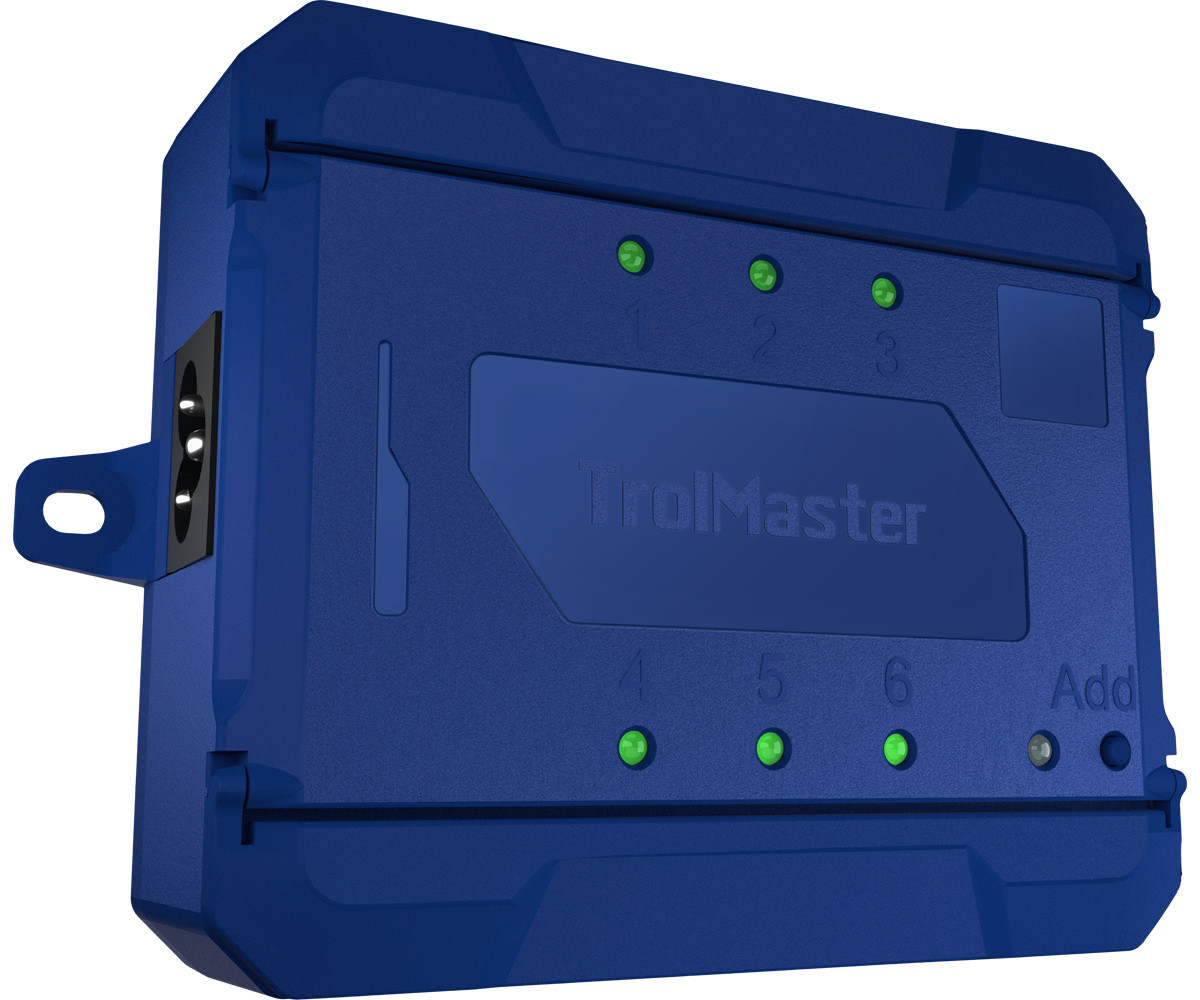

TrolMaster (OA6-24) 24V Control Board for Aqua-X System
The OA6-24 control board is designed to control multiple 24vac solenoid valves.
It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.
Features & Benefits:
Specification:
The OA6-24 control board is designed to control multiple 24vac solenoid valves.
It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.
Features & Benefits:

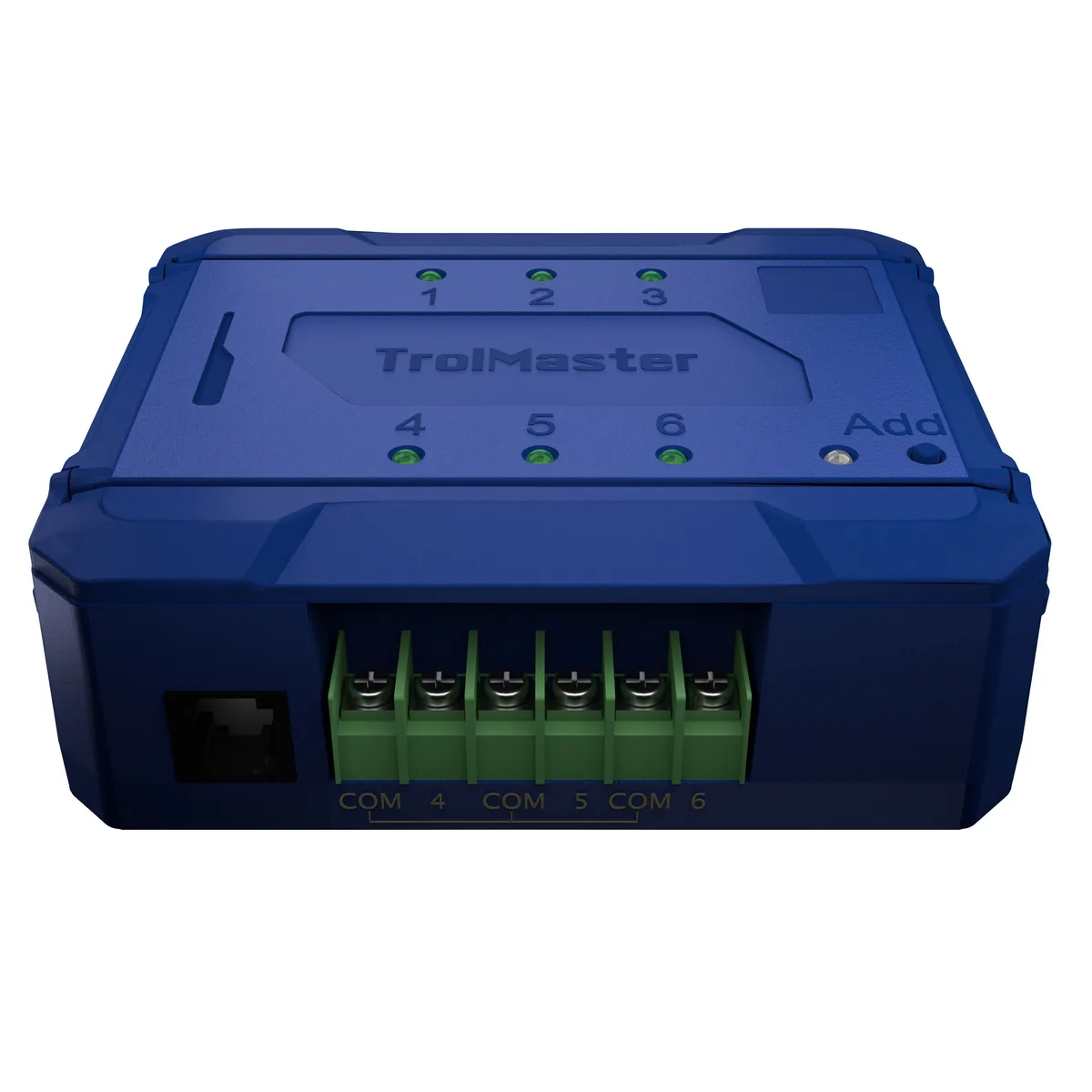

- LED Power Indicator
- Addressing Button
- 6 Individually-Controlled 24V Outputs
- Individual LED Indicator for Each Output
- Double RJ12 Cable Sockets for Daisy Chain Connectivity
- 1 x 24V Control Board
- 1 x 16ft RJ12 Cable
Specification:
- Input Voltage:110-240 VAC
- Max Input Current:0.2A
- Max Output Voltage/Current:24VAC/0.2A per output
- Working Temperature:32°-122°F
- Working Humidity:≤90%
- Packaging Dimensions:275mm(L) x 164mm(W) x 40mm(H)
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Meters & Monitoring > Timers
- Listed weight: 1.34 lbs
- Listed dimensions: 24 x 24 x 6 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCOA624
BrandTrolMaster
UPC6970207970564
Weight1.34 lbs
Dimensions24 x 24 x 6 in
Sold Aseach
Voltage110-240VAC
Sensor TypesTemperature, Humidity
Max Solenoids6
Max Amps0.2A
TypeModule
Size1x16 ft
