TrolMaster
TrolMaster Aqua-X Irrigation Control System with Water Detection
SKU: TRCNFS1
$348.60
Each
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Trusted Since 2009
Quick answer
TrolMaster Aqua-X Irrigation Control System with Water Detection should be matched by flow rate, pressure, line size, fitting type, filtration, and the number of plants or zones being fed.
Best fitIrrigation or hydroponic systems where pumps, tubing, fittings, filters, and emitters need to work together.
Check before orderingConfirm thread size, tubing ID/OD, fitting type, pressure needs, filtration, and timer compatibility.
Grower tipBuild irrigation with serviceability in mind. Filters, shutoffs, and spare fittings save time when a room is full.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description

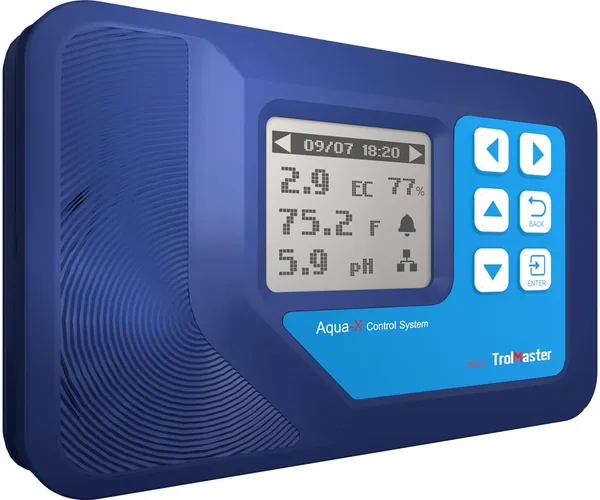

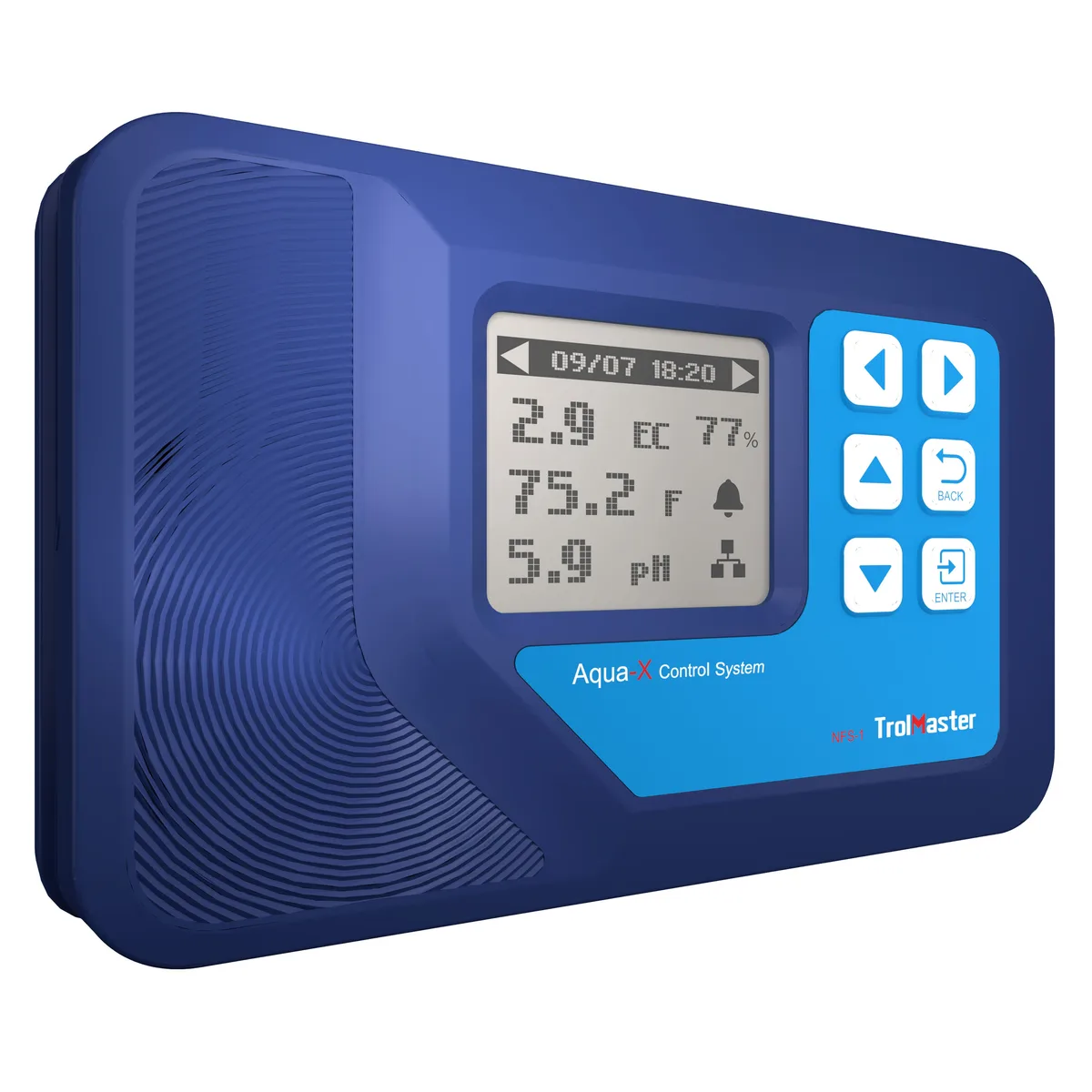

TrolMaster (NFS-1) Aqua-X Controller
TrolMaster's Aqua-X (NFS-1) system is a professional-grade irrigation control system. It is a fully customizable modular designed system. Installation is simple and the system is easy to expand. The Aqua-X is designed to control up to 30 separate irrigation zones (24vac solenoid valves or 120vac pumps), The Aqua-x monitors' pH / EC and water temp as well as monitor actual growing medium moisture levels by using up to (8) Water Content Sensors connected to a single Aqua-x controller. The timers can be set-up to be recycling timers or to operate at a specific time of day and durations. With the free TrolMaster App, users could access all settings and alerts on the system from anywhere anytime.
The NFS-1 is the brain of the Aqua-X system. It comes with a water detector WD-1 for leaking alert and watering confirmation.
Features & Benefits:
Package Content:
Specification:
TrolMaster's Aqua-X (NFS-1) system is a professional-grade irrigation control system. It is a fully customizable modular designed system. Installation is simple and the system is easy to expand. The Aqua-X is designed to control up to 30 separate irrigation zones (24vac solenoid valves or 120vac pumps), The Aqua-x monitors' pH / EC and water temp as well as monitor actual growing medium moisture levels by using up to (8) Water Content Sensors connected to a single Aqua-x controller. The timers can be set-up to be recycling timers or to operate at a specific time of day and durations. With the free TrolMaster App, users could access all settings and alerts on the system from anywhere anytime.
The NFS-1 is the brain of the Aqua-X system. It comes with a water detector WD-1 for leaking alert and watering confirmation.
Features & Benefits:
- LCD Display, Easy Operation
- Managing Multiple Rooms, Multiple Zones Delivery
- Control up to 30 Solenoid Valves or Pumps
- pH, EC, Temp Monitoring
- Free Smartphone App with Alerts & Historical Chart
- Data Logging
Package Content:
- 1 x Aqua-X Controller
- 1 x Water Detector
- 1 x Touch Spot
- 1 x 12V Power Adapter
Specification:
- Input Voltage: 100-240 VAC, 50/60Hz
- OA6-24 24V Control Board: Max. 5pcs per set
- OA6-110 110V Control Board: Max. 5pcs per set
- DSP-1 Program Device Station: Max. 5pcs per set
- Water Detector: Max. 30pcs per set
- AMP-2 Sensor Board: Max. 1pc per set
- PCT-1 or PCT-2 EC/Temp Sensor: Max. 1pc per set
- PPH-1 or PPH-2 pH Sensor: Max. 1pc per set
- Packaging Dimensions: 275mm(L) x 164mm(W) x 62mm(H)
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Hydroponics & Irrigation > Controllers & Monitors
- Listed weight: 1.72 lbs
- Listed dimensions: 24 x 24 x 6 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCNFS1
BrandTrolMaster
UPC6970207970557
Weight1.72 lbs
Dimensions24 x 24 x 6 in
Price UnitEach
Sold Aseach
