TrolMaster Hydro-X Thermostat Station 2 (heat pump and conventional HVAC) (TS-2)
SKU: TRCTS2
$128.62
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Quick answer
TrolMaster Hydro-X Thermostat Station 2 (heat pump and conventional HVAC) (TS-2) should be chosen around the equipment it must run, the probes or readings needed, and the level of automation required.
Best fitGrowers matching controls, meters, dosing, or monitoring gear to an existing room or irrigation setup.
Check before orderingConfirm compatible probes, modules, cable lengths, app requirements, voltage, replacement parts, and calibration needs.
Grower tipIf you are matching this to existing equipment, call with the model numbers so compatibility can be checked first.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description

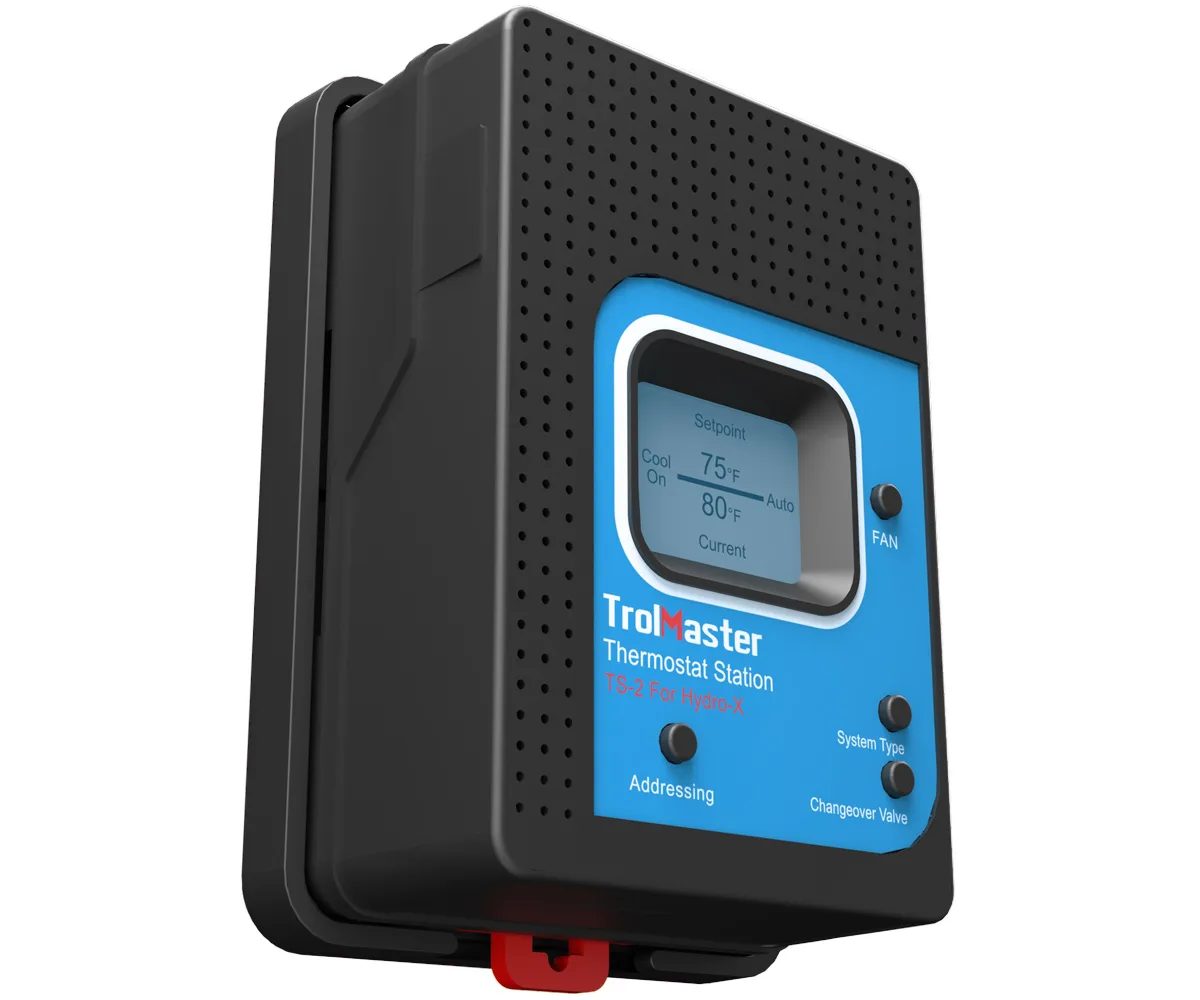

TrolMaster (TS-2) Thermostat Station for Hydro-X System
TrolMaster's TS-2 thermostat station is designed to replace a thermostat connected to a standard HVAC unit. The TS-2 can be used to control most HVAC systems including heat pumps and multi-stage HVAC systems. The TS-2 is wired to the HVAC system using the same low-voltage thermostat cable and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS modules, so multiple HVAC systems can be controlled by a single Hydro-X system. The TS-2 also has an adjustable delay time for each HVAC system being activated. That minimizes high start-up (inrush current) and allows up to 4 HVAC systems to be safely controlled.
Features & Benefits:
Specification:
TrolMaster's TS-2 thermostat station is designed to replace a thermostat connected to a standard HVAC unit. The TS-2 can be used to control most HVAC systems including heat pumps and multi-stage HVAC systems. The TS-2 is wired to the HVAC system using the same low-voltage thermostat cable and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS modules, so multiple HVAC systems can be controlled by a single Hydro-X system. The TS-2 also has an adjustable delay time for each HVAC system being activated. That minimizes high start-up (inrush current) and allows up to 4 HVAC systems to be safely controlled.
Features & Benefits:
- LCD Display, Easy Operation
- Seamless Connection with Hydro-X
- Micro-SD for Firmware Upgrade
- Address Assignment
- Plug & Play
- 1 x Thermostat Station (TS-2)
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specification:
- Output Voltage:24V
- Maximum Current:1A
- Working Temperature:32-122°F
- Working Humidity:≤90%
- Packaging Dimensions:160mm(L) x 86mm(W) x 86mm(H)
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Climate Control > Controllers & Monitors
- Listed weight: 0.88184976 lbs
- Listed dimensions: 8 x 6 x 5 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCTS2
BrandTrolMaster
UPC6970207970656
Weight0.88184976 lbs
Dimensions8 x 6 x 5 in
Sold Aseach
Voltage24V
Sensor TypesTemperature, Humidity
Max Amps1A
Compatible WithHydro-X (HCS-1)
ModelTS-2
TypeModule/Station
Size1x16 ft
