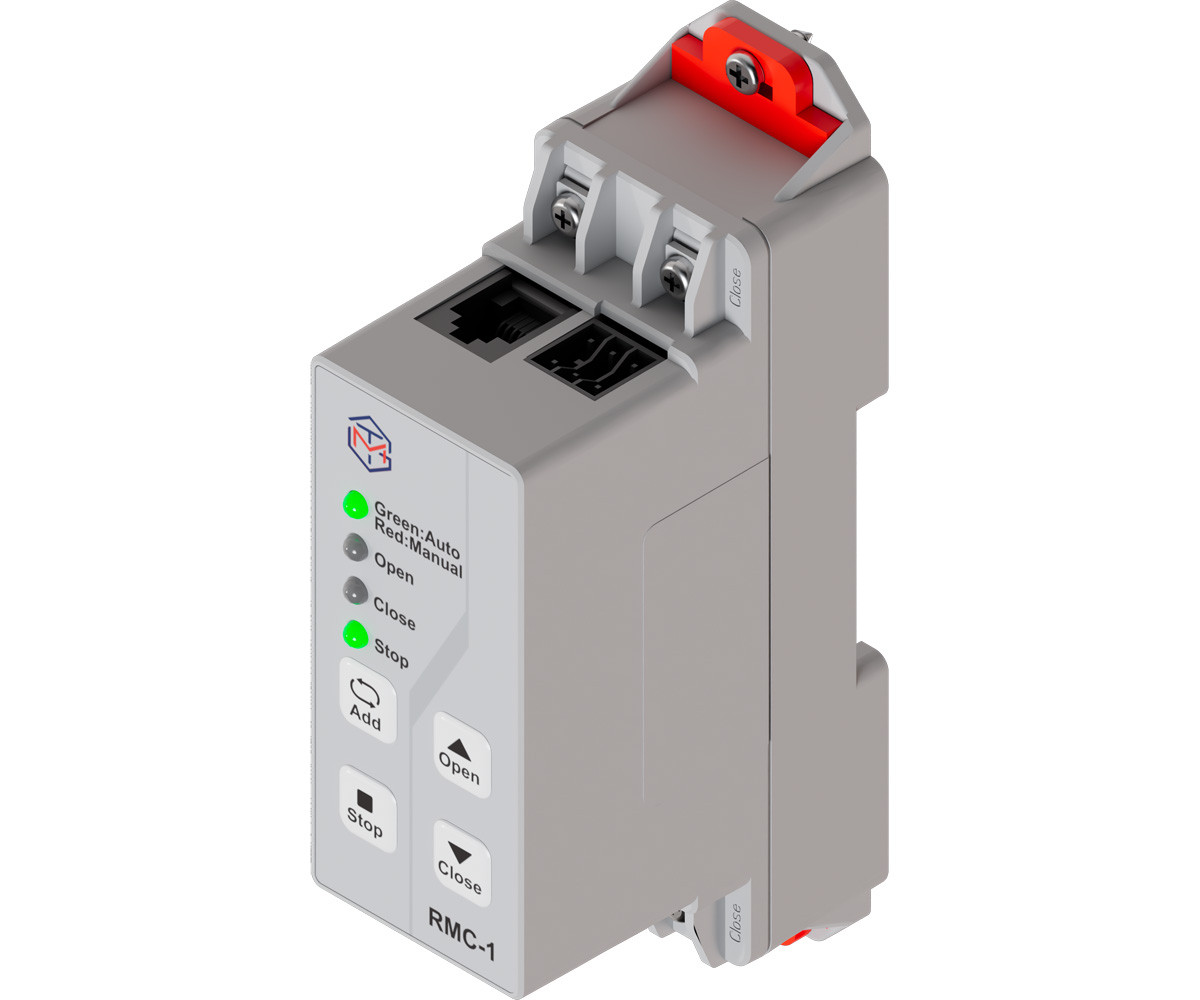

TrolMaster Motor Control Dry Contact Station (RMC-1)

The TrolMaster RMC-1 (Motor Control Dry Contact Station) is a specialized peripheral driver designed to provide precise ON/OFF control for terminal equipment within the Green-X Greenhouse Control System (GCS-1) ecosystem. Equipped with two internal relays, RMC-1 provides a dry-contact output only; it functions solely as an isolated switch with a contact rating of 1A. The RMC-1 allows for manual and automated management of external circuits, facilitating functions such as forward rotation, reverse rotation, and stopping of motors. Features • Provides precise ON/OFF control for terminal equipment. • Equipped with two internal relays providing an isolated dry-contact output (1A rating). • Supports manual and automated management of external circuits. • Facilitates forward rotation, reverse rotation, and motor stopping. Specifications • Input Voltage: 12V 0.1A. • Dry Contact: 1A@250VAC, 1A@30VDC. • Operating Humidity: ≤90%RH. • Operating Temperature: 32~104°F (0~40°C). Package Content • 1x Motor Control Dry Contact Station (RMC-1). • 1x 4ft RJ12 Cable. • 1x 0.5ft RJ12 Cable. • 1x 2EDGKNH-3.5mm_2x3P. • 1x LC89+LZ4R-3.5mm_2x3P.
