TrolMaster
TrolMaster CO2 Alarm Station (AS-1)
SKU: TRCAS1
$131.25
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Trusted Since 2009
Quick answer
TrolMaster CO2 Alarm Station (AS-1) should be matched to room volume, heat and moisture load, target conditions, placement, electrical service, and controller needs.
Best fitTents, rooms, or greenhouses where airflow, temperature, or humidity equipment must fit the actual environmental load.
Check before orderingConfirm voltage, dimensions, duct or drain setup, clearances, noise, controller compatibility, and service access.
Grower tipRoom size alone may not determine capacity. Plant count, lighting heat, irrigation, and outside conditions also matter.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description
TrolMaster (AS-1) CO2 Alarm Station (audio/visual) with Cable Set

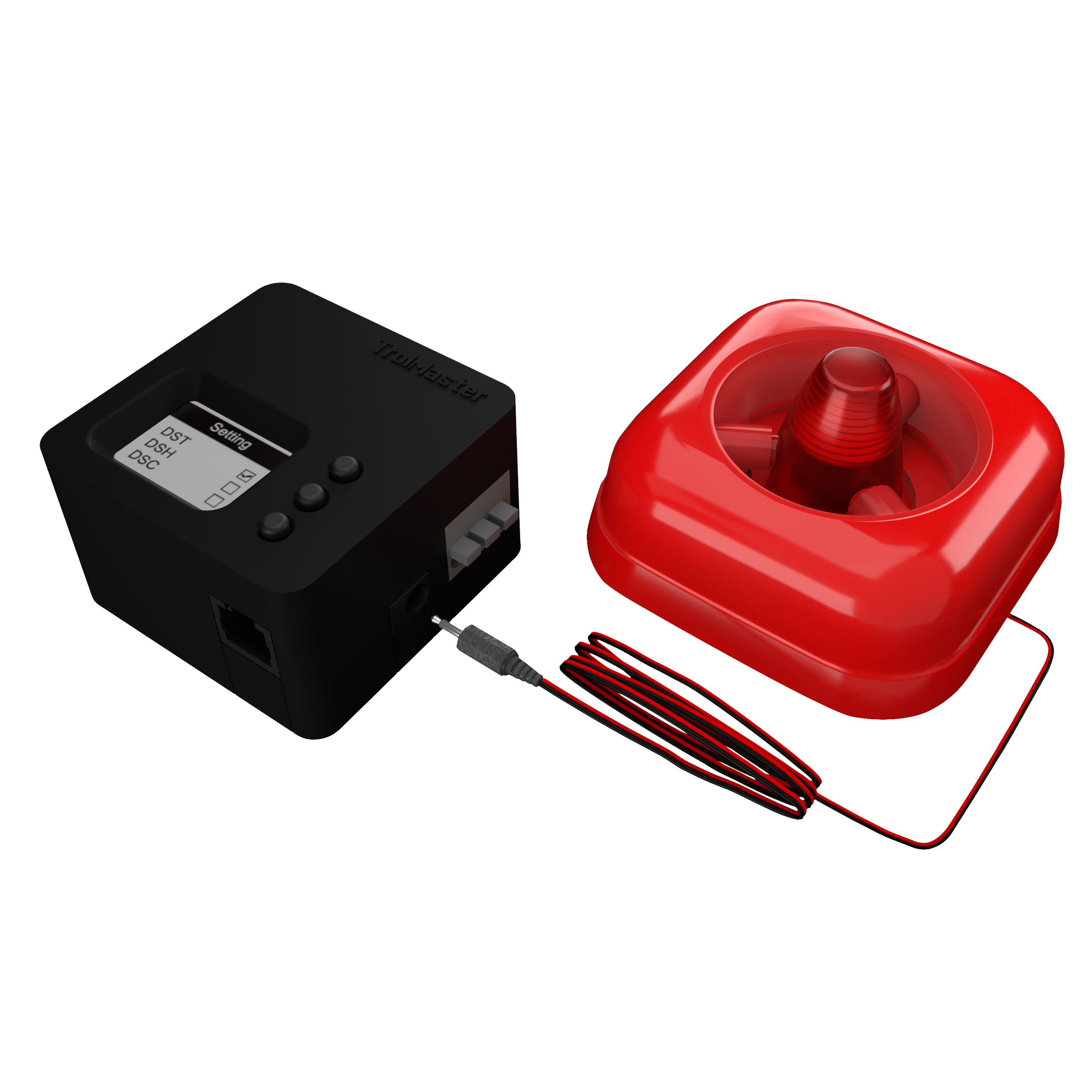

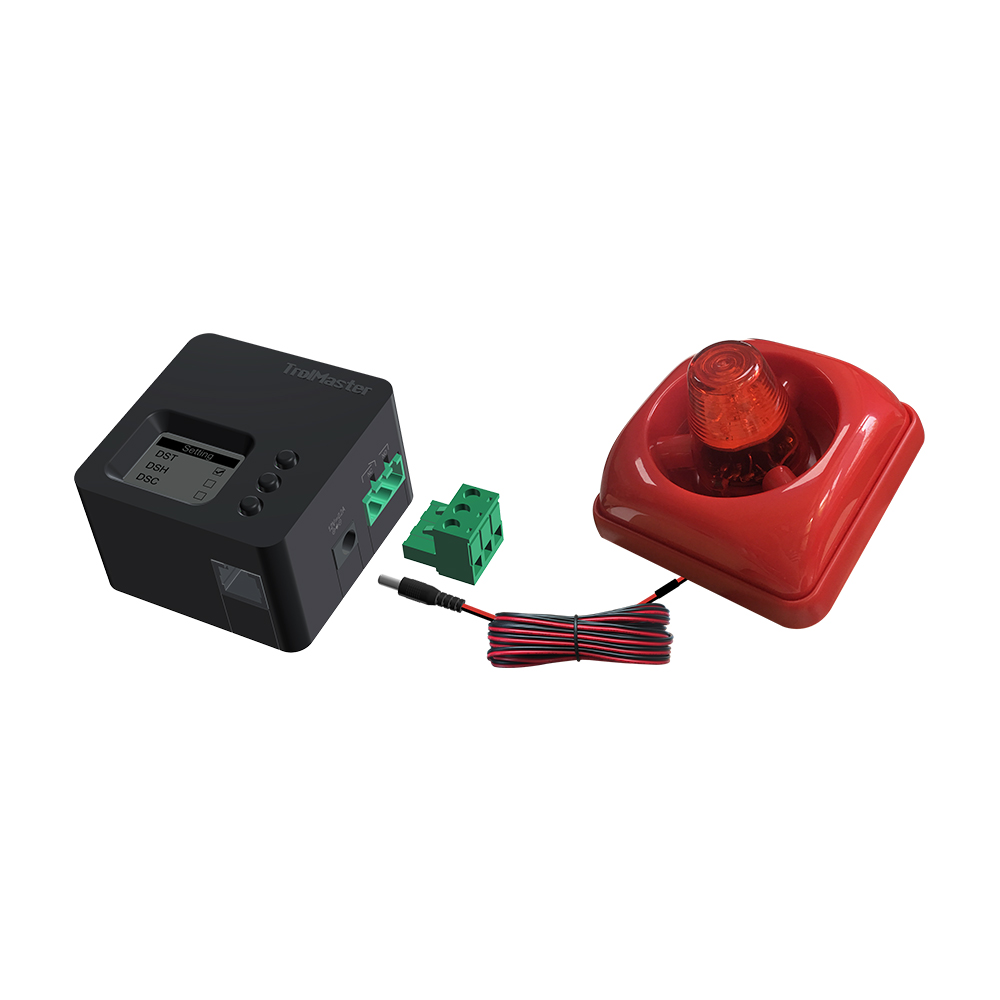

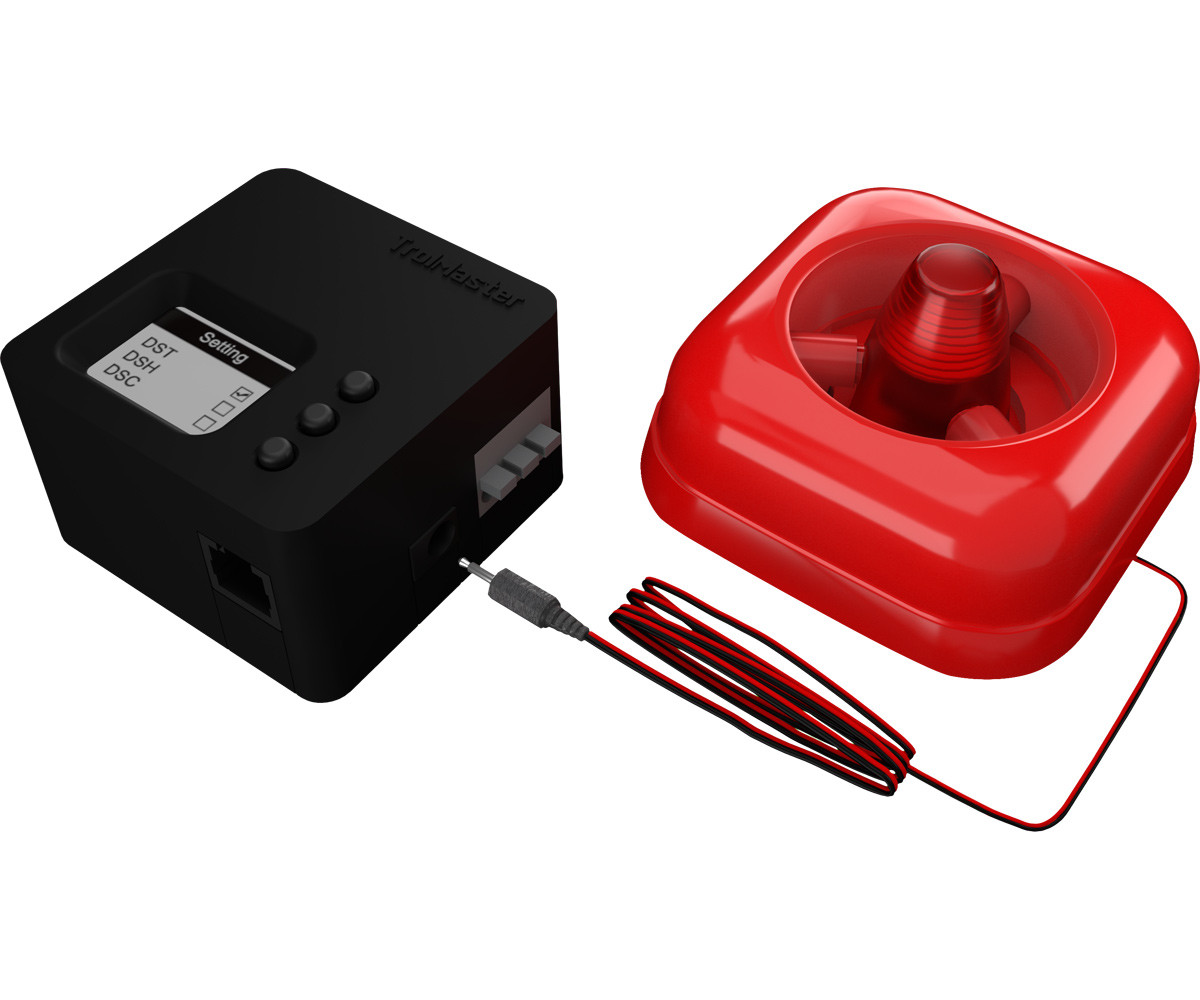

The AS-1 CO2 Alarm Station Set consists of the DSD-1 Dry contact station and the AS-5 audible-visual alarm. The AS-1 alarm set can be mounted inside or outside grow-rooms or grow facilities. It will sound both audible and visible alarms in the event where CO2 level goes above normal or safe levels.
When connected to the Devices RJ12 port and paired with the CDA-1 the AS-1 can be linked to either AL-1 or AL-2 CO2 sensors channel, or it can be linked to both sensors channels for complete redundancy.
Features & Benefits:
Package Content:
Specification:
The AS-1 CO2 Alarm Station Set consists of the DSD-1 Dry contact station and the AS-5 audible-visual alarm. The AS-1 alarm set can be mounted inside or outside grow-rooms or grow facilities. It will sound both audible and visible alarms in the event where CO2 level goes above normal or safe levels.
When connected to the Devices RJ12 port and paired with the CDA-1 the AS-1 can be linked to either AL-1 or AL-2 CO2 sensors channel, or it can be linked to both sensors channels for complete redundancy.
Features & Benefits:
- Plug and Play
- Extra Dry Contact output
Package Content:
- 1 x DSD-1
- 1x Alarm
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specification:
- Input Voltage: 100~240 VAC, 50/60Hz
- Output Current: 24V 0.2A
- Siren: 85dB
- Strobe: Red, 120 FPM
- Dry Contact Output: 30VDC/250VAC,6A
- Working Environments: Temperature 32-122°F, Humidity<=90%
- Package Dimensions: 160mm(L) x 80mm(W) x 90mm(H)
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Climate Control > Controllers & Monitors
- Listed weight: 1.12 lbs
- Listed dimensions: 16 x 12 x 12 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCAS1
BrandTrolMaster
UPC6970207970908
Weight1.12 lbs
Dimensions16 x 12 x 12 in
Sold Aseach
Voltage24V
Ports12
Sensor TypesTemperature, Humidity, CO2
Signal TypeDry Contact
Max Amps0.2A
ModelAS-1
TypeModule/Station
Size1x16 ft
ColorRed
