TrolMaster
TrolMaster CO2 Emergency Stop Station (DSE-1)
SKU: TRCDSE1
$109.20
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Trusted Since 2009
Quick answer
TrolMaster CO2 Emergency Stop Station (DSE-1) should be matched to room volume, heat and moisture load, target conditions, placement, electrical service, and controller needs.
Best fitTents, rooms, or greenhouses where airflow, temperature, or humidity equipment must fit the actual environmental load.
Check before orderingConfirm voltage, dimensions, duct or drain setup, clearances, noise, controller compatibility, and service access.
Grower tipRoom size alone may not determine capacity. Plant count, lighting heat, irrigation, and outside conditions also matter.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description

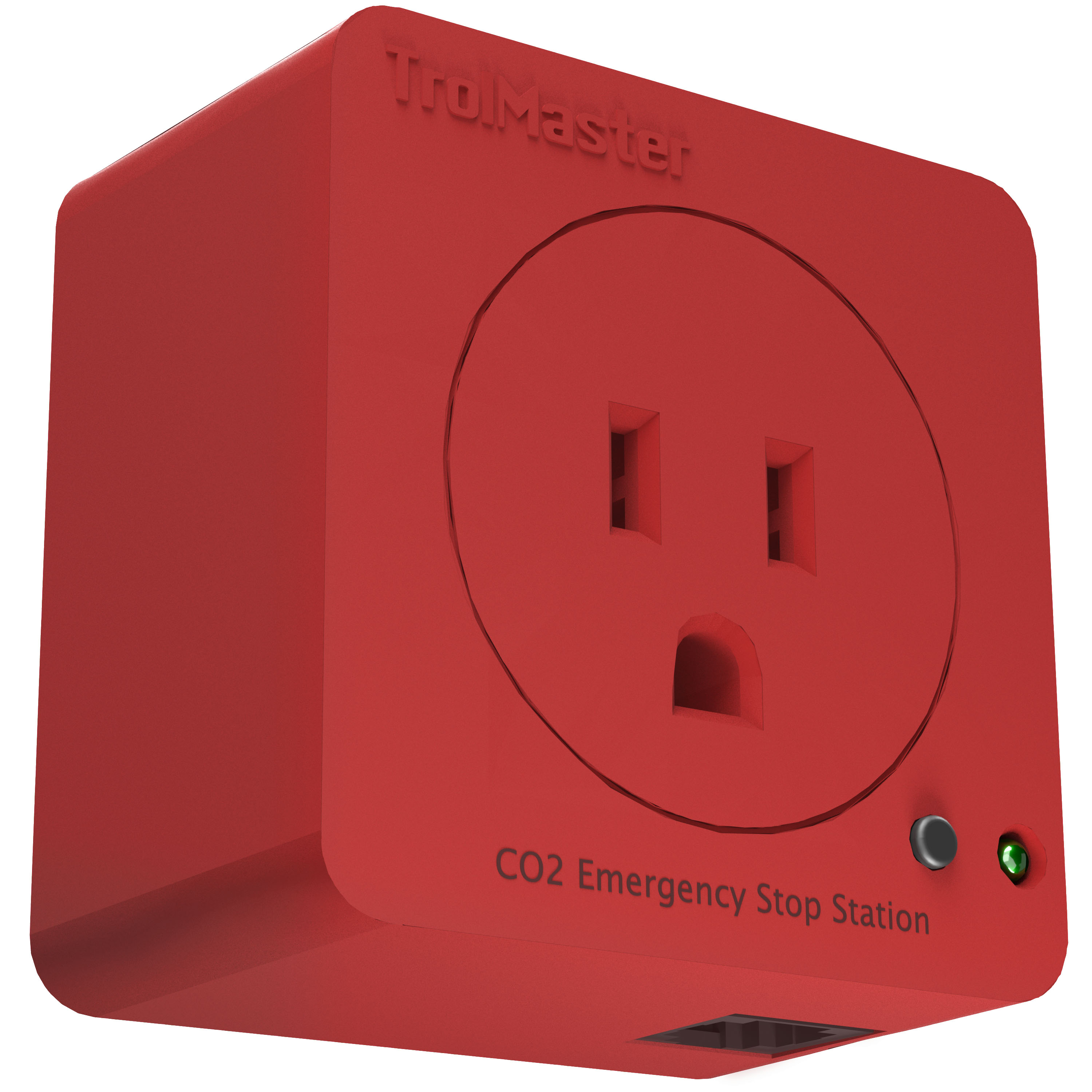

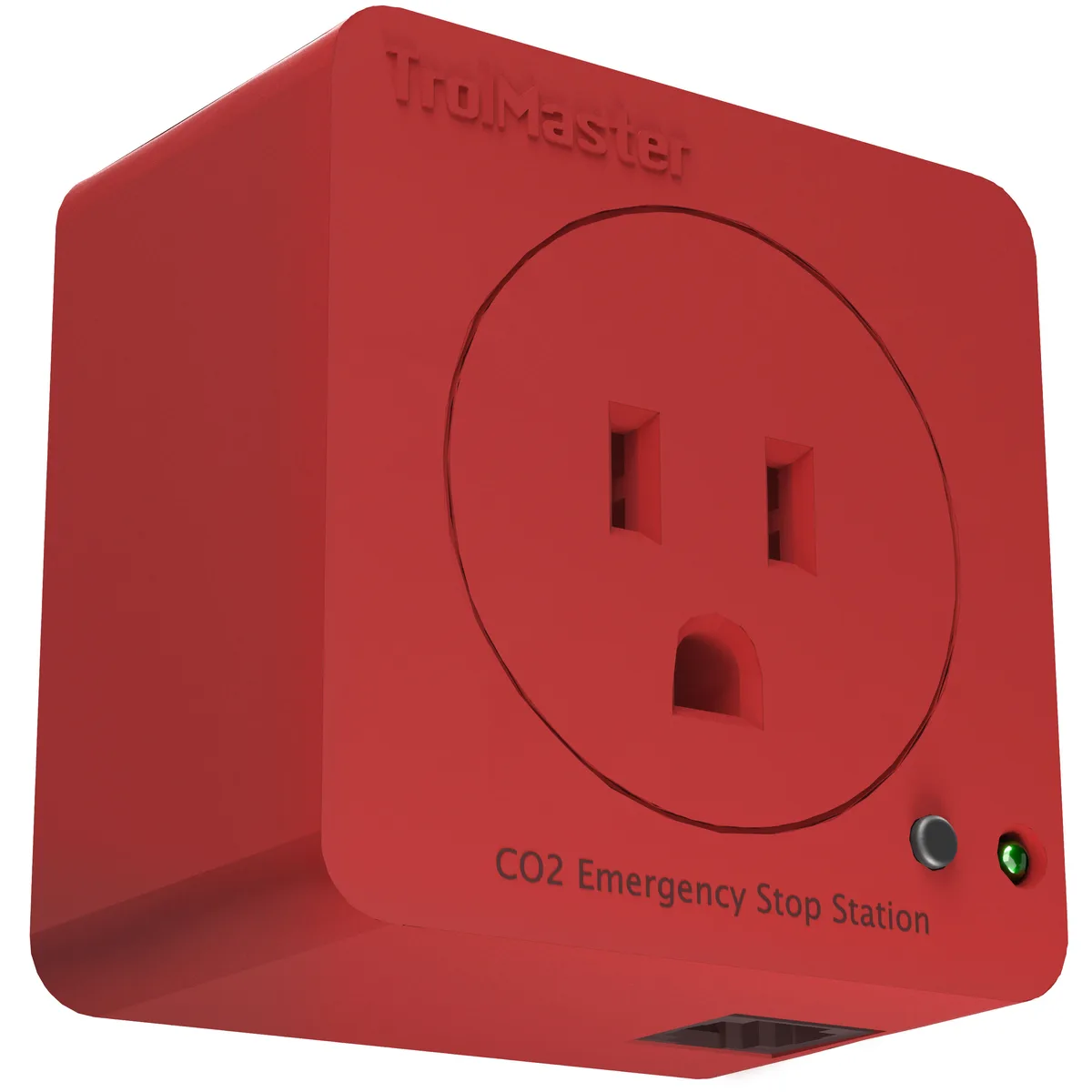

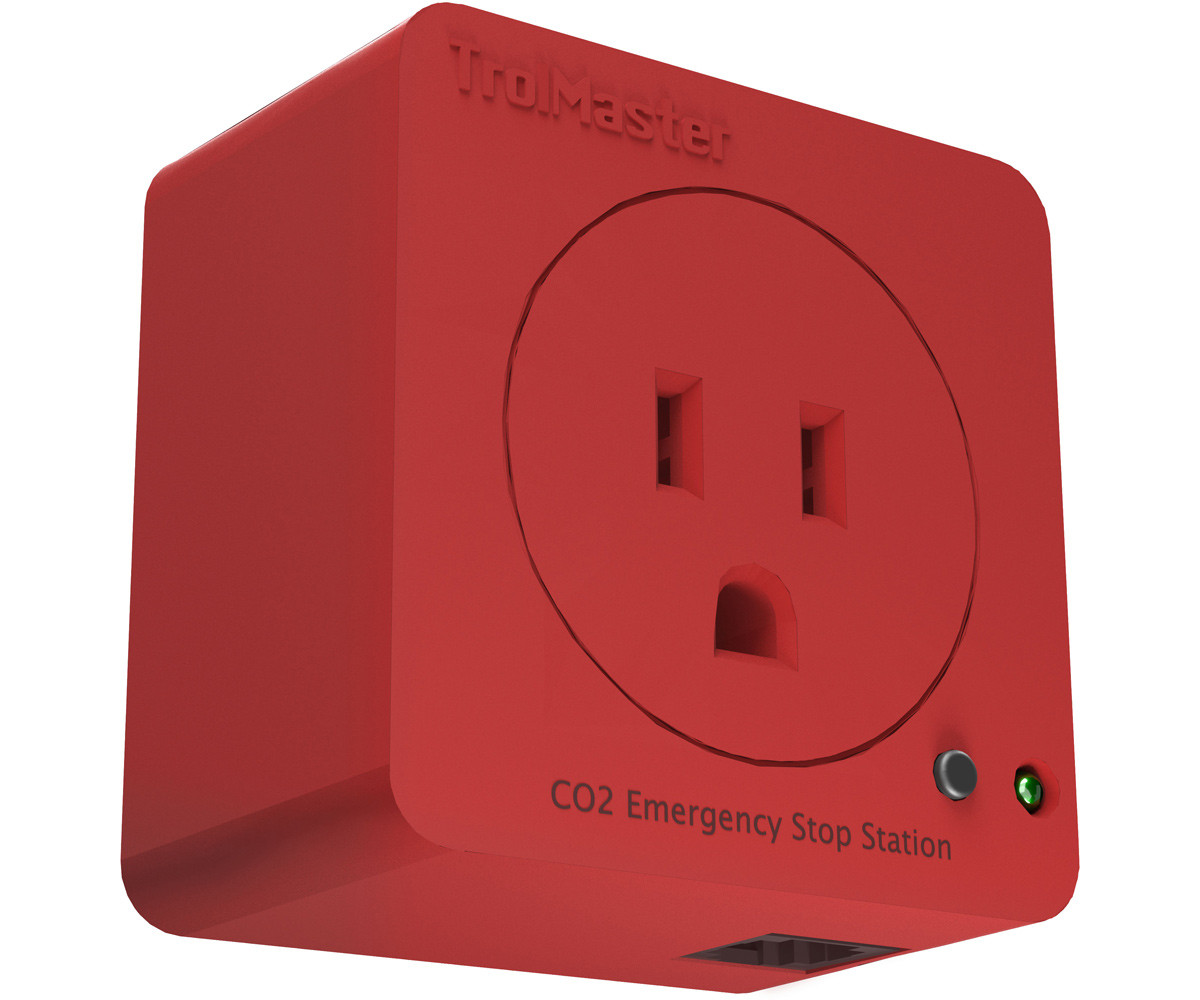

TrolMaster (DSE-1) CO2 Emergency Stop Station

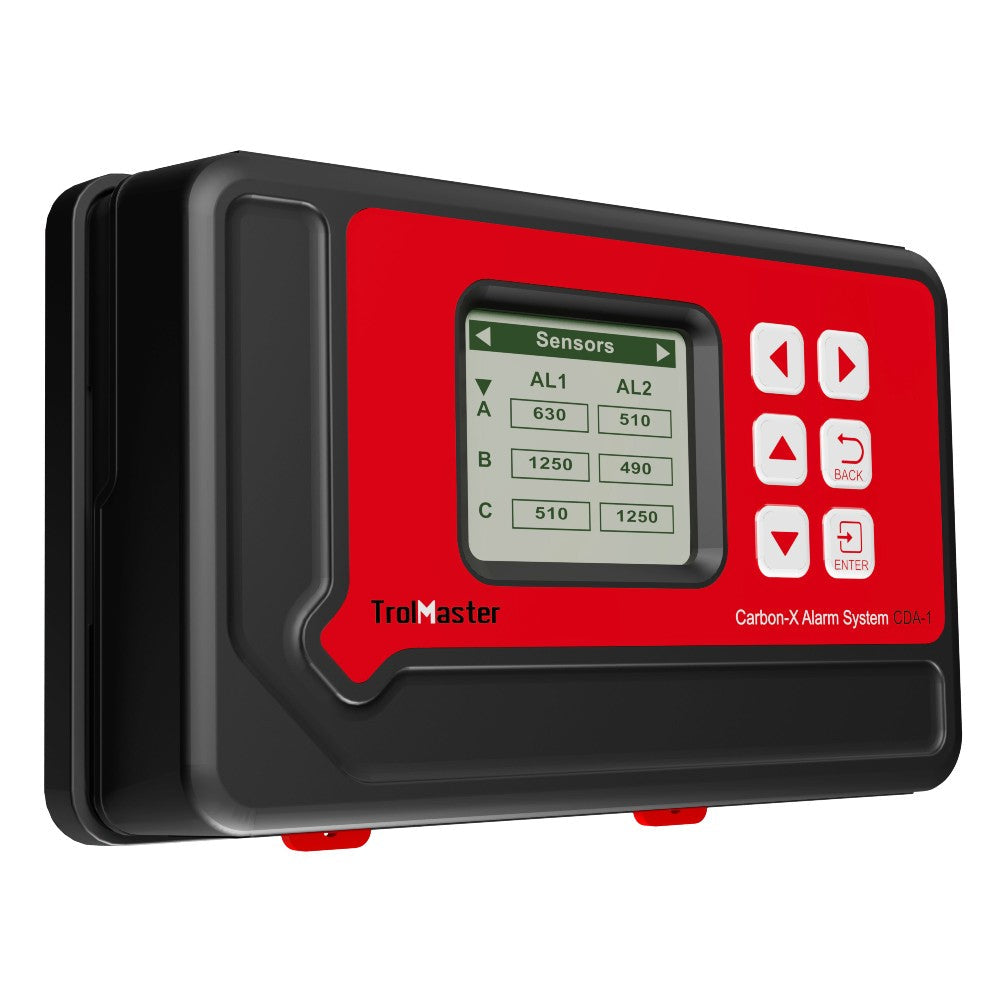

TrolMaster's DSE-1 CO2 Emergency Stop Station provides a simple method to shut off the CO2 supply when any fault or high CO2 level is detected. It is a 120V controlled outlet that supplies the power to CO2 solenoid valves in normal operation. The Carbon-X will then automatically shut off DSE-1 power if any fault or high CO2 level is detected within any of the installed CO2 sensors. If the DSE-1 loses communication with the Carbon-X, the power supply will also be disabled.
Features & Benefits:
Package Content:
Specification:
TrolMaster's DSE-1 CO2 Emergency Stop Station provides a simple method to shut off the CO2 supply when any fault or high CO2 level is detected. It is a 120V controlled outlet that supplies the power to CO2 solenoid valves in normal operation. The Carbon-X will then automatically shut off DSE-1 power if any fault or high CO2 level is detected within any of the installed CO2 sensors. If the DSE-1 loses communication with the Carbon-X, the power supply will also be disabled.
Features & Benefits:
- LED Power Indicator
- RJ12 Cable Socket
- Addressing
- Plug & Play

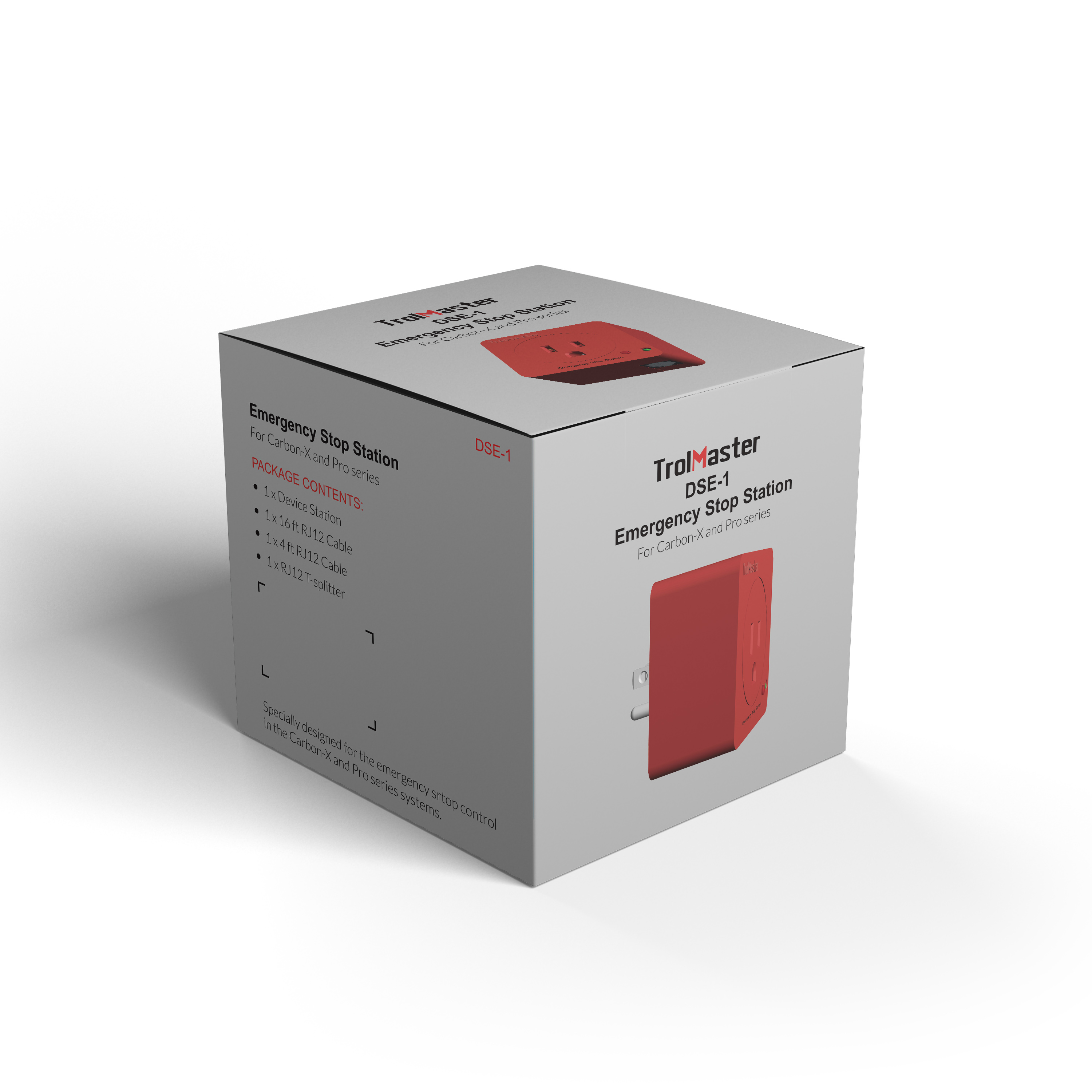

Package Content:
- 1 x Emergency Stop Device Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specification:
- Input Voltage: 100~240 VAC, 50/60Hz
- Output Current: 10A
- Output Voltage: 100~240 VAC, 50/60Hz
- Working Temperature: 32-122°F
- Working Humidity: ≤ 90%
- Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)
- G.W. per pack: 0.34kgs
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Climate Control > Controllers & Monitors
- Listed weight: 0.749572296 lbs
- Listed dimensions: 16 x 12 x 12 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCDSE1
BrandTrolMaster
UPC6970207971295
Weight0.75 lbs
Dimensions16 x 12 x 12 in
Sold Aseach
Voltage120V
Sensor TypesTemperature, Humidity, CO2
Max Solenoids2
Max Amps10A
ModelDSE-1
TypeModule/Station
Size1x16 ft
