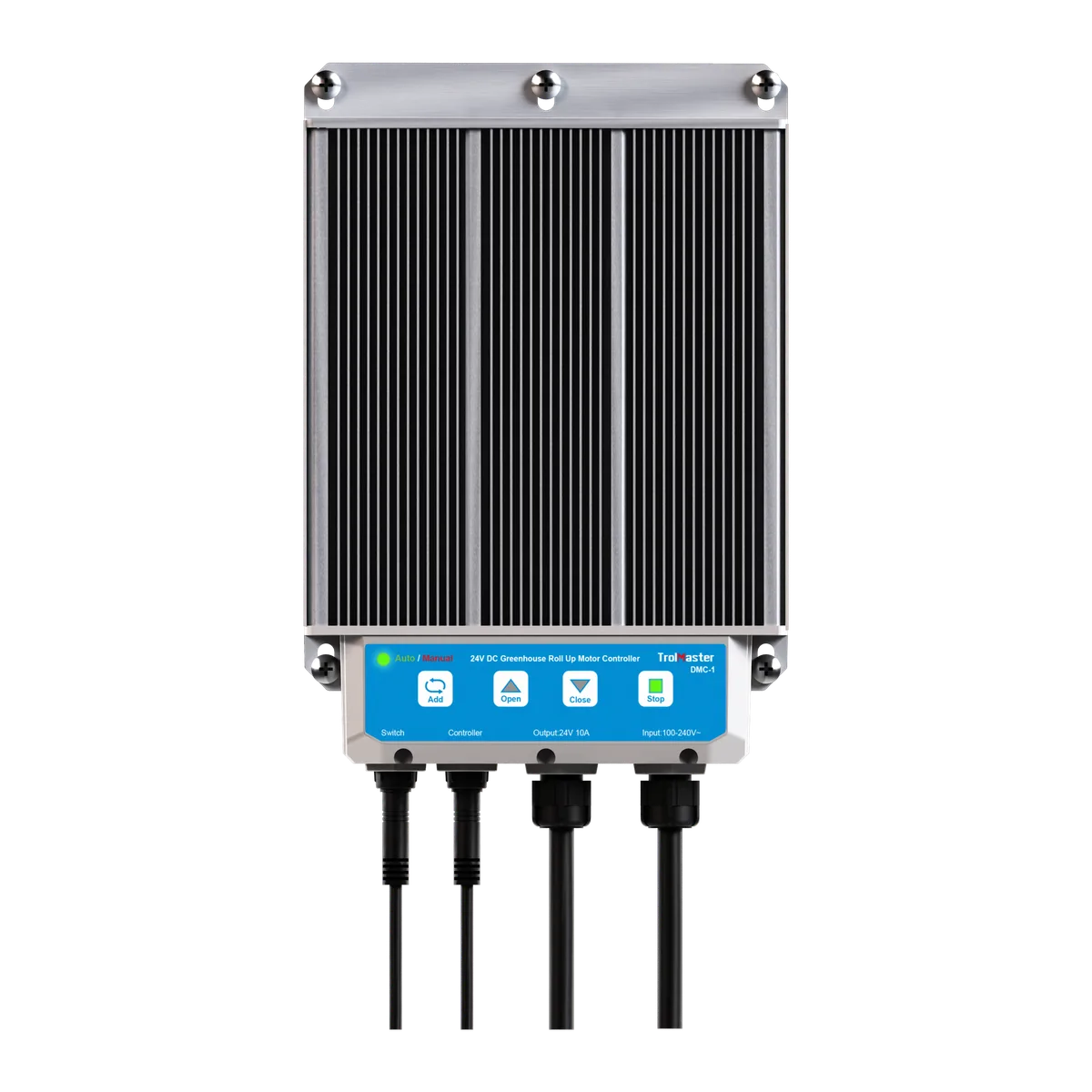

TrolMaster 24V DC Greenhouse Roll-Up Motor Controller (DMC-1)
SKU: TRCDMC1
$399.00
Each
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Trusted Since 2009
Quick answer
TrolMaster 24V DC Greenhouse Roll-Up Motor Controller (DMC-1) should be matched to structure dimensions, bench layout, load, covering or hardware compatibility, installation, and service access.
Best fitGreenhouse and production projects where measurements, materials, load, and compatible components are known.
Check before orderingConfirm exact dimensions, compatible structure or bench system, installation hardware, freight handling, and replacement parts.
Grower tipMeasure twice and keep service paths clear; greenhouse components can be expensive to return once freight is involved.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description
(DMC-1) 24V DC Greenhouse Roll Up Motor Controller
The DMC-1 is an advanced motor driver for agricultural greenhouse curtains that enables both manual and automated control of curtain motors. It is designed for seamless integration with the GCS (Green-X Greenhouse System) and provides precise motor control, including forward and reverse operation, stopping functions, timeout shutoff, and overcurrent protection. This integration enhances greenhouse management by allowing centralized monitoring and control, optimizing environmental conditions for plant growth and improving operational efficiency.
Features & Benefits
Package Contents
Package Dimensions:
The DMC-1 is an advanced motor driver for agricultural greenhouse curtains that enables both manual and automated control of curtain motors. It is designed for seamless integration with the GCS (Green-X Greenhouse System) and provides precise motor control, including forward and reverse operation, stopping functions, timeout shutoff, and overcurrent protection. This integration enhances greenhouse management by allowing centralized monitoring and control, optimizing environmental conditions for plant growth and improving operational efficiency.
Features & Benefits
- Seamless Connection with GCS-1
- Assignable control of 24V motors and curtain control
- Plug-and-play
Package Contents
- 1x DMC-1
- 1x Power
- 1x Cross Screwdriver
- 1x 12ft RJ12 to 4pin IP65 Connector Cable
- Input Voltage: 100-240VAC, 50/60Hz
- Working Environments:
- Temperature: 32-104°F (0-40°C)
- Humidity: ≤90% RH
- Waterproof Rating: IP44
- American Wire Gauge (AWG):
- Output: Cannot be less than 16 AWG
- Communication Method: RS-485 (4-pin waterproof connector)
- No-load Power Consumption: <2W (at 240V input)
Package Dimensions:
- Size: 10.83 inches / 275 mm (L) x 6.69 inches / 170 mm (W) x 3.74 inches / 95 mm (H)
- Gross Weight: 4.63 lbs / 2.1 kg
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Greenhouses & Benching > Controllers & Monitors
- Listed weight: 1.3 lbs
- Listed dimensions: 16 x 12 x 12 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCDMC1
BrandTrolMaster
UPC6970207973084
Weight1.30 lbs
Dimensions16 x 12 x 12 in
Price UnitEach
Sold Aseach
