TrolMaster
TrolMaster Dry Contact Station (DSD-1)
SKU: TRCDSD1
$82.95
Available to Order (19 available)
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Quick answer
TrolMaster Dry Contact Station (DSD-1) should be chosen around the equipment it must run, the probes or readings needed, and the level of automation required.
Best fitGrowers matching controls, meters, dosing, or monitoring gear to an existing room or irrigation setup.
Check before orderingConfirm compatible probes, modules, cable lengths, app requirements, voltage, replacement parts, and calibration needs.
Grower tipIf you are matching this to existing equipment, call with the model numbers so compatibility can be checked first.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description

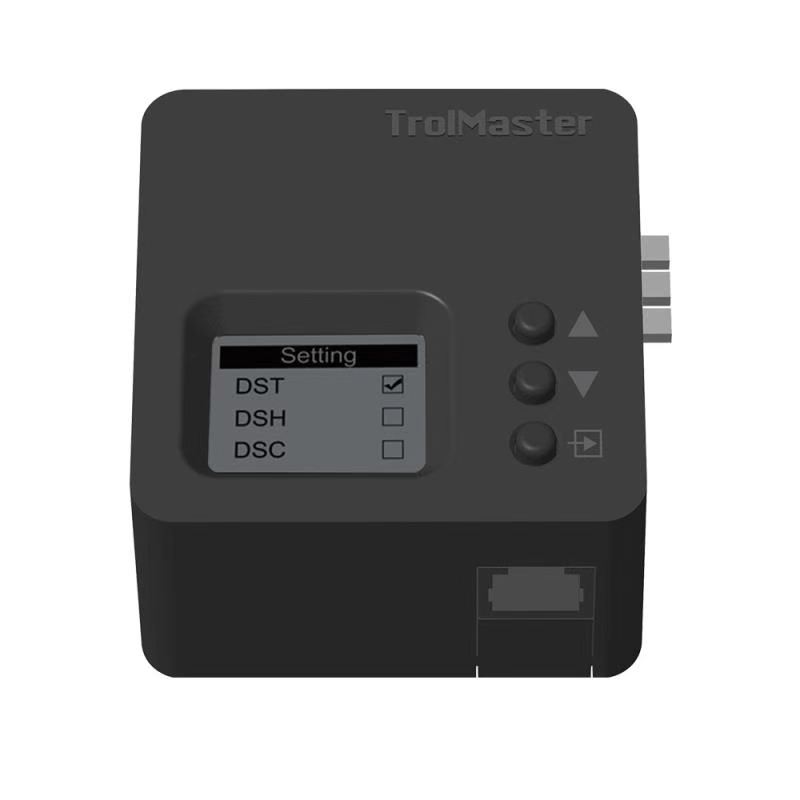

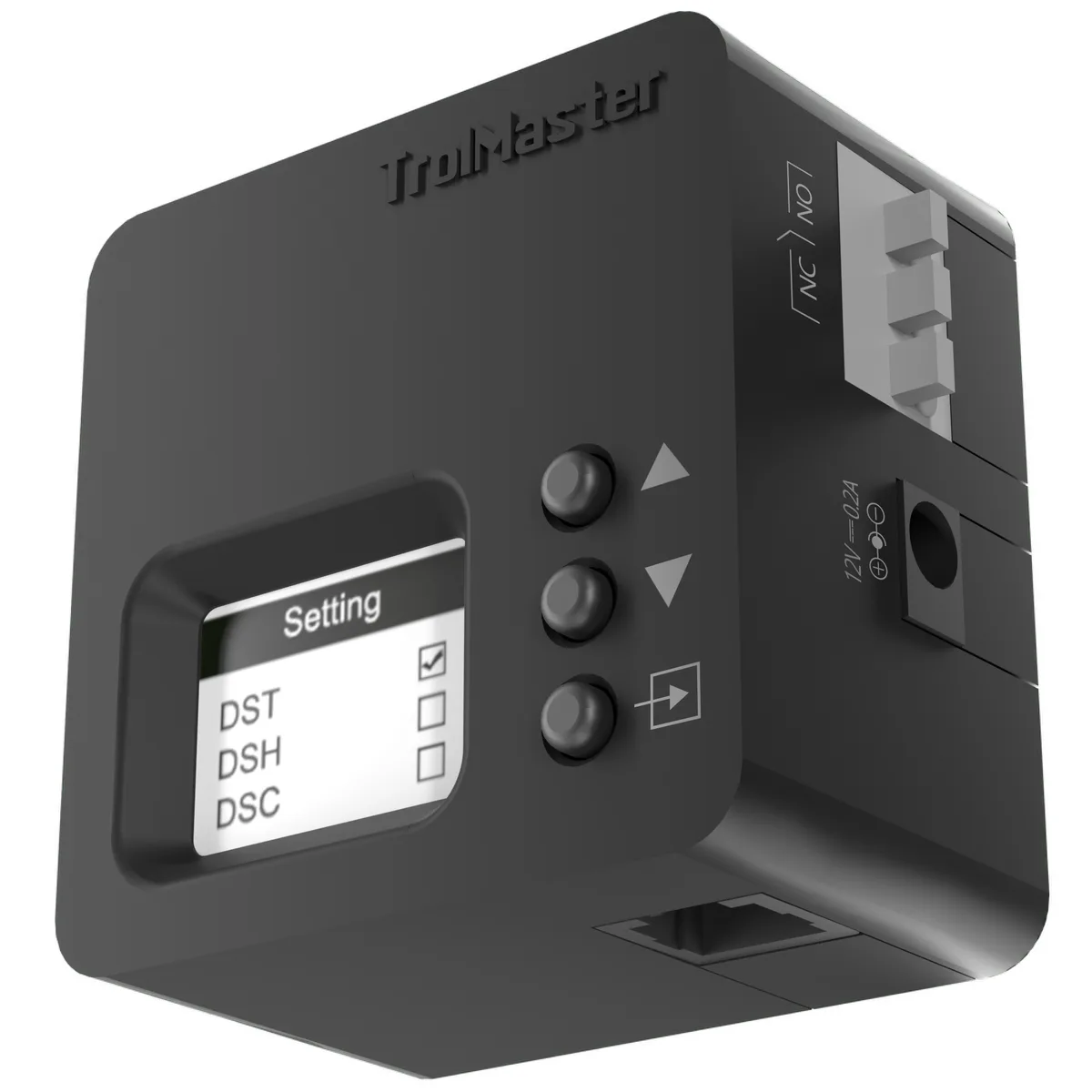

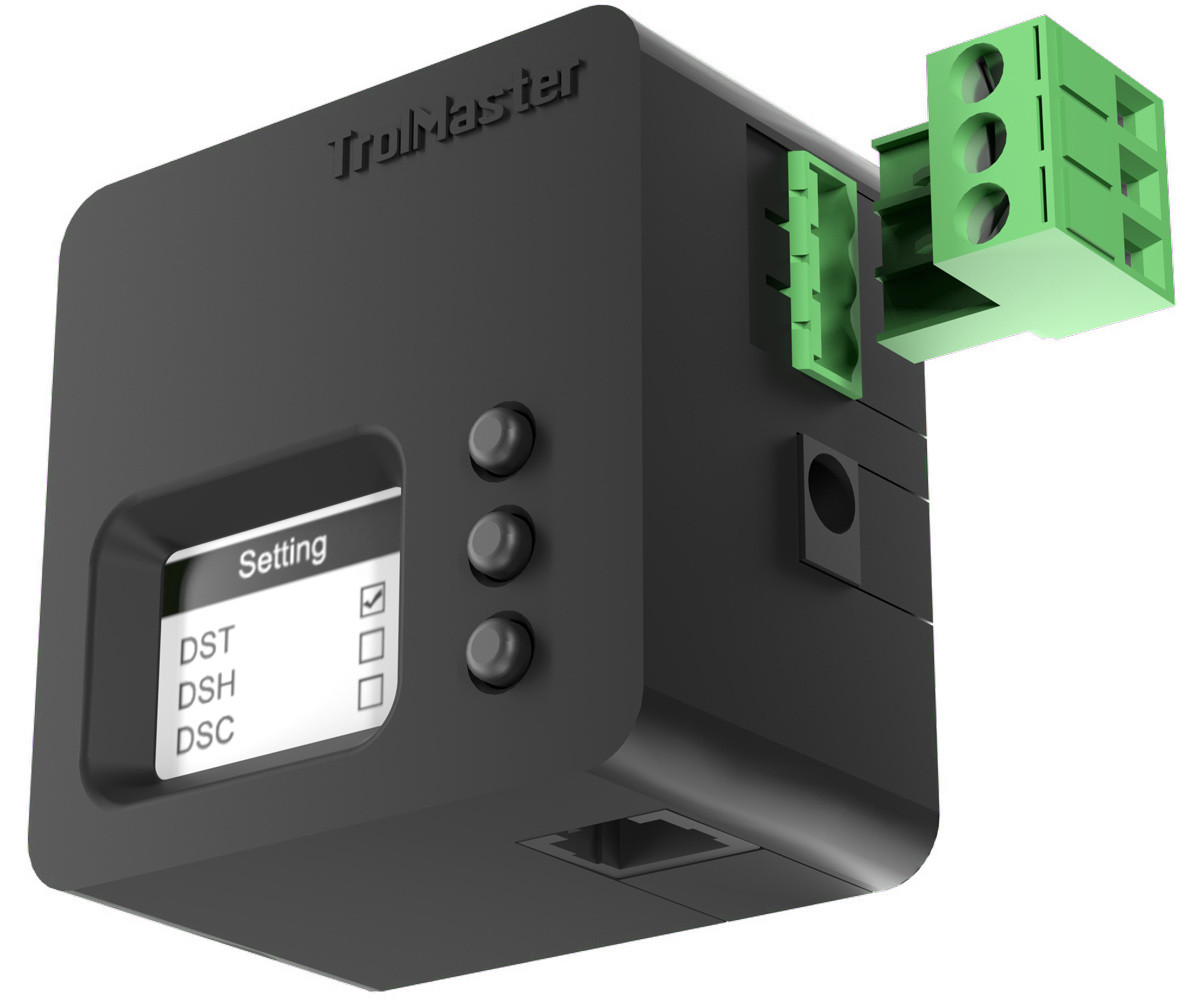

TrolMaster (DSD-1) Dry Contact Station for Hydro-X system

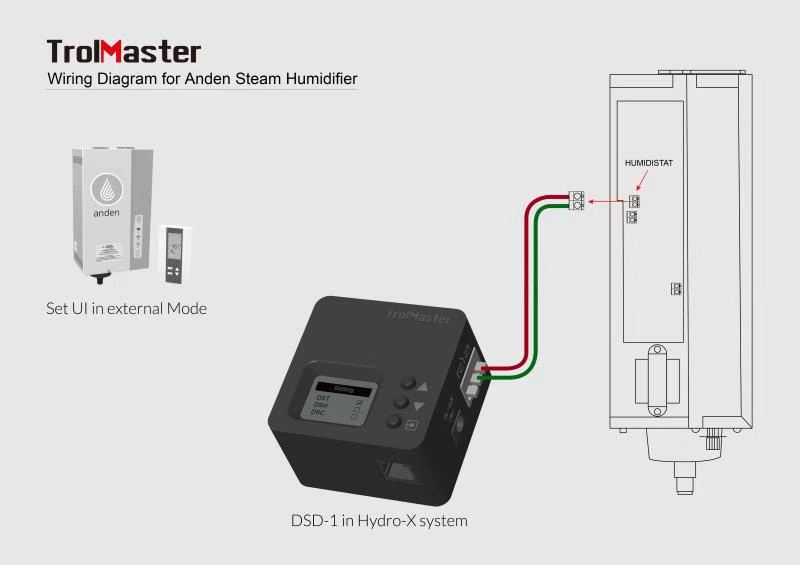

The Trolmaster DSD-1 Dry-contact module provides a simple and flexible solution to the user’s who want to connect & control devices to the Hydro-X using a “dry-contact” or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is the product that you need to control those types of devices. It can be configured to work as the other Trolmaster power modules work, such as DST, DSH, DSC, DSH.
Comes with a cable set.
Features & Benefits:
Package Content:
Specification:
The Trolmaster DSD-1 Dry-contact module provides a simple and flexible solution to the user’s who want to connect & control devices to the Hydro-X using a “dry-contact” or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is the product that you need to control those types of devices. It can be configured to work as the other Trolmaster power modules work, such as DST, DSH, DSC, DSH.
Comes with a cable set.
Features & Benefits:
- LCD Indicator
- Attaching Plug
- RJ12 Cable Socket
- Address Assignment
- Plug & Play

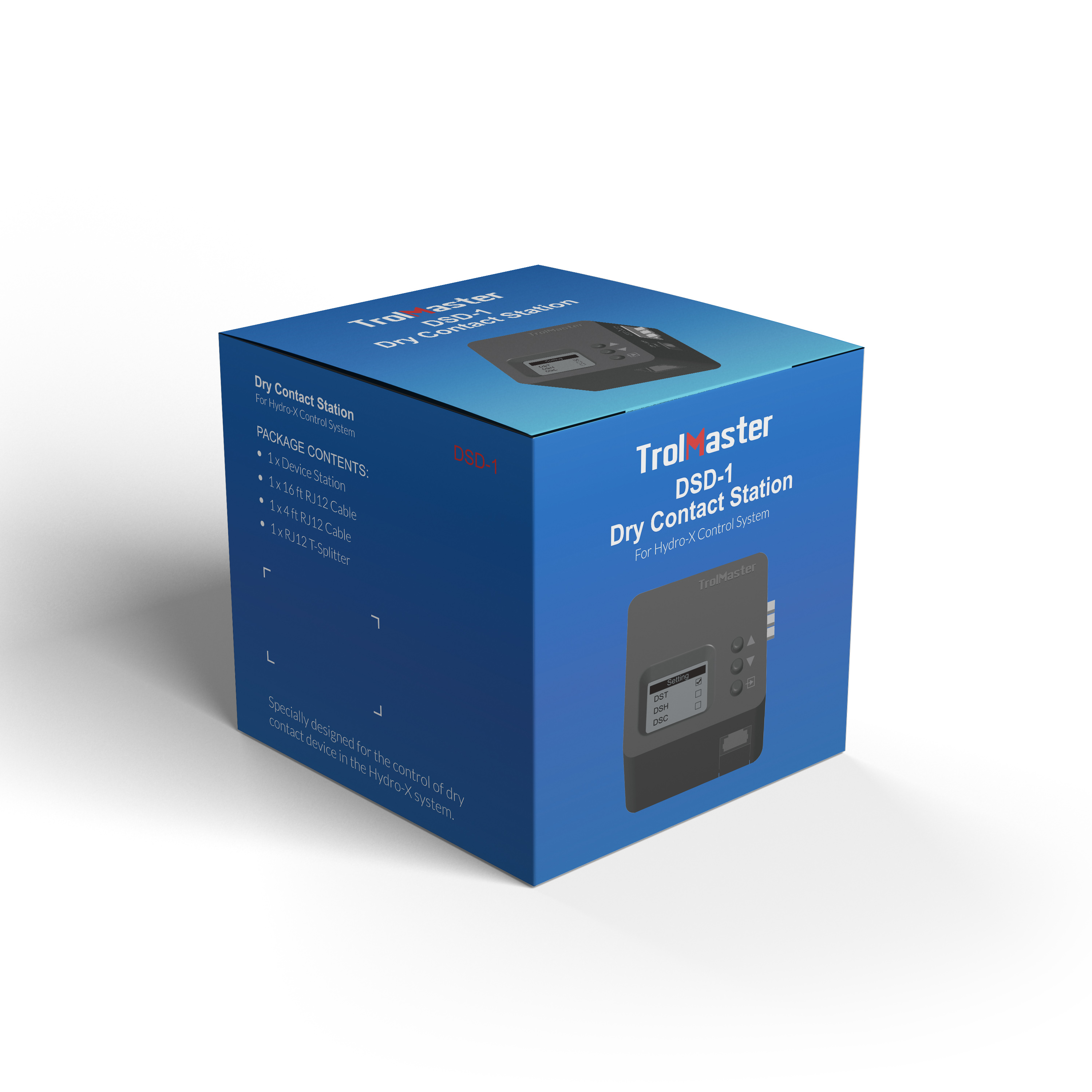

Package Content:
- 1 x Dry Contact Station DSD-1
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specification:
- Input Voltage : 100~240 VAC, 50/60Hz
- Output Current : 10A
- Output Voltage : 100~240 VAC, 50/60Hz
- Working Temperature : 32-122°F
- Working Humidity : ≤90%
- Packaging Dimensions : 85mm(L) x 80mm(W) x 90mm(H)
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Meters & Monitoring > Controllers & Monitors
- Listed weight: 0.749572296 lbs
- Listed dimensions: 9 x 6 x 4 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCDSD1
BrandTrolMaster
UPC6970207970946
Weight0.75 lbs
Dimensions9 x 6 x 4 in
Sensor TypesTemperature, Humidity
Signal TypeDry Contact
Max Amps10A
Compatible WithHydro-X (HCS-1)
ModelDSD-1
TypeModule/Station
Size1x16 ft
