TrolMaster
TrolMaster Expander Station 4 (4RS-1)
SKU: TRC4RS1
$152.25
Available to Order (30 available)
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Quick answer
TrolMaster Expander Station 4 (4RS-1) should be chosen around the equipment it must run, the probes or readings needed, and the level of automation required.
Best fitGrowers matching controls, meters, dosing, or monitoring gear to an existing room or irrigation setup.
Check before orderingConfirm compatible probes, modules, cable lengths, app requirements, voltage, replacement parts, and calibration needs.
Grower tipIf you are matching this to existing equipment, call with the model numbers so compatibility can be checked first.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description

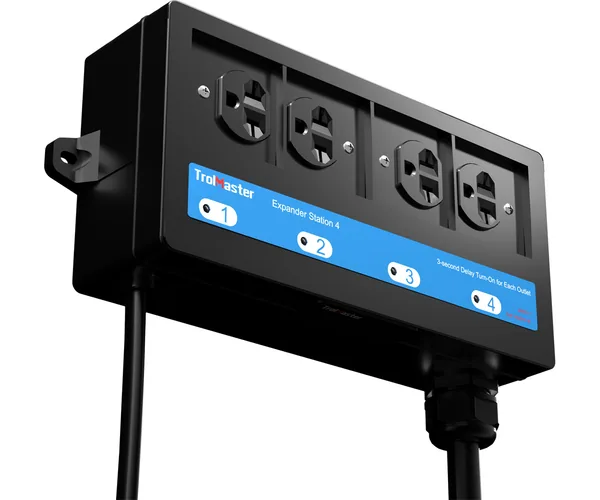

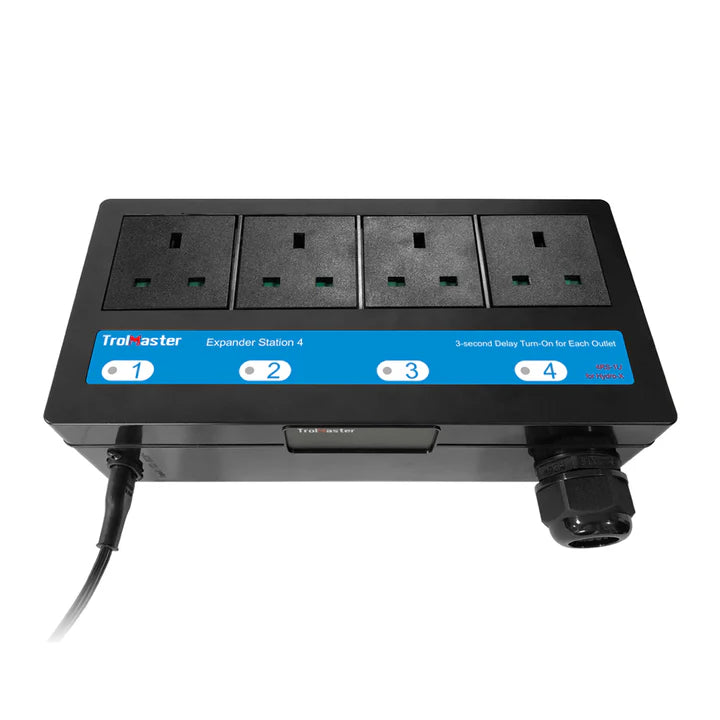

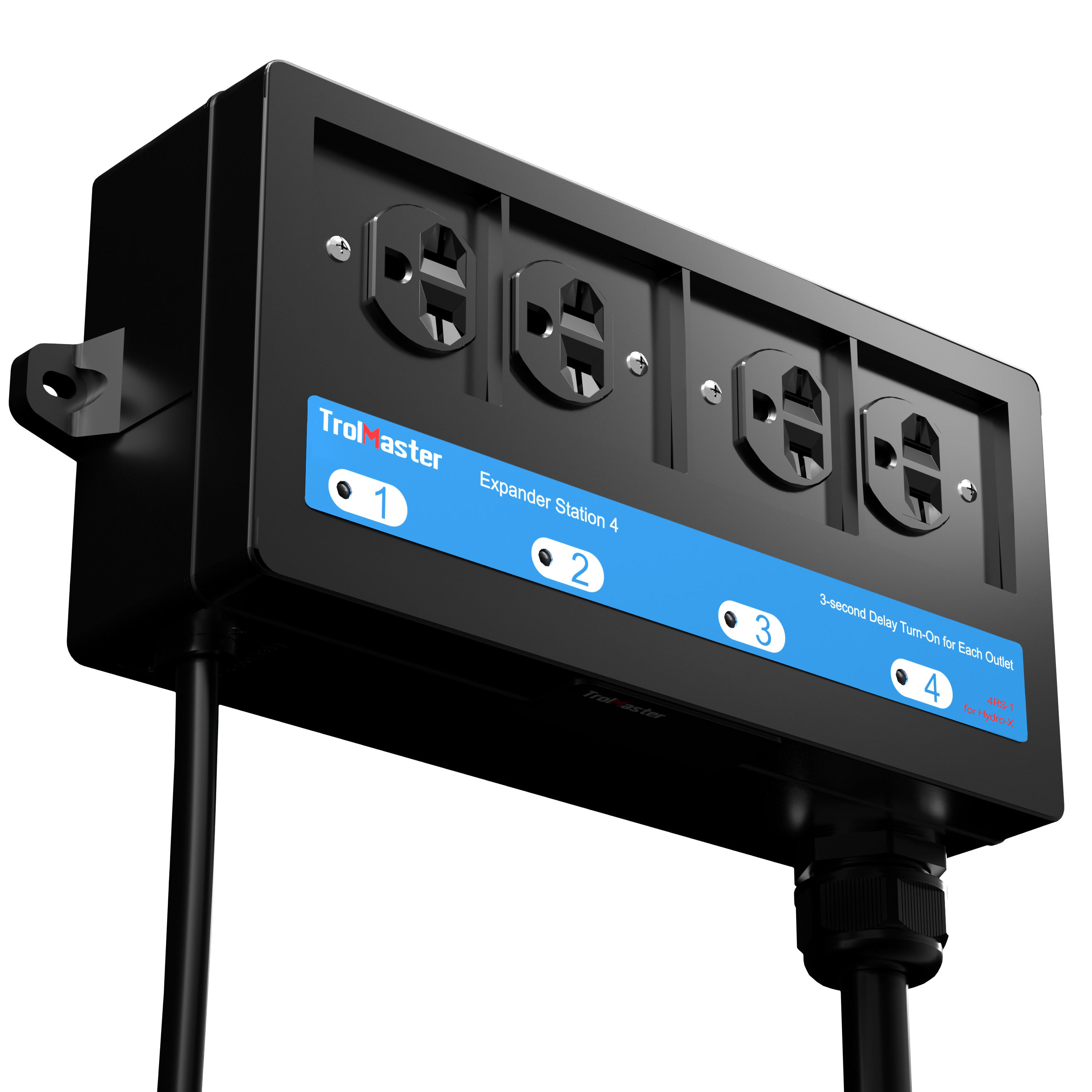

TrolMaster (4RS-1) Expander Station 4

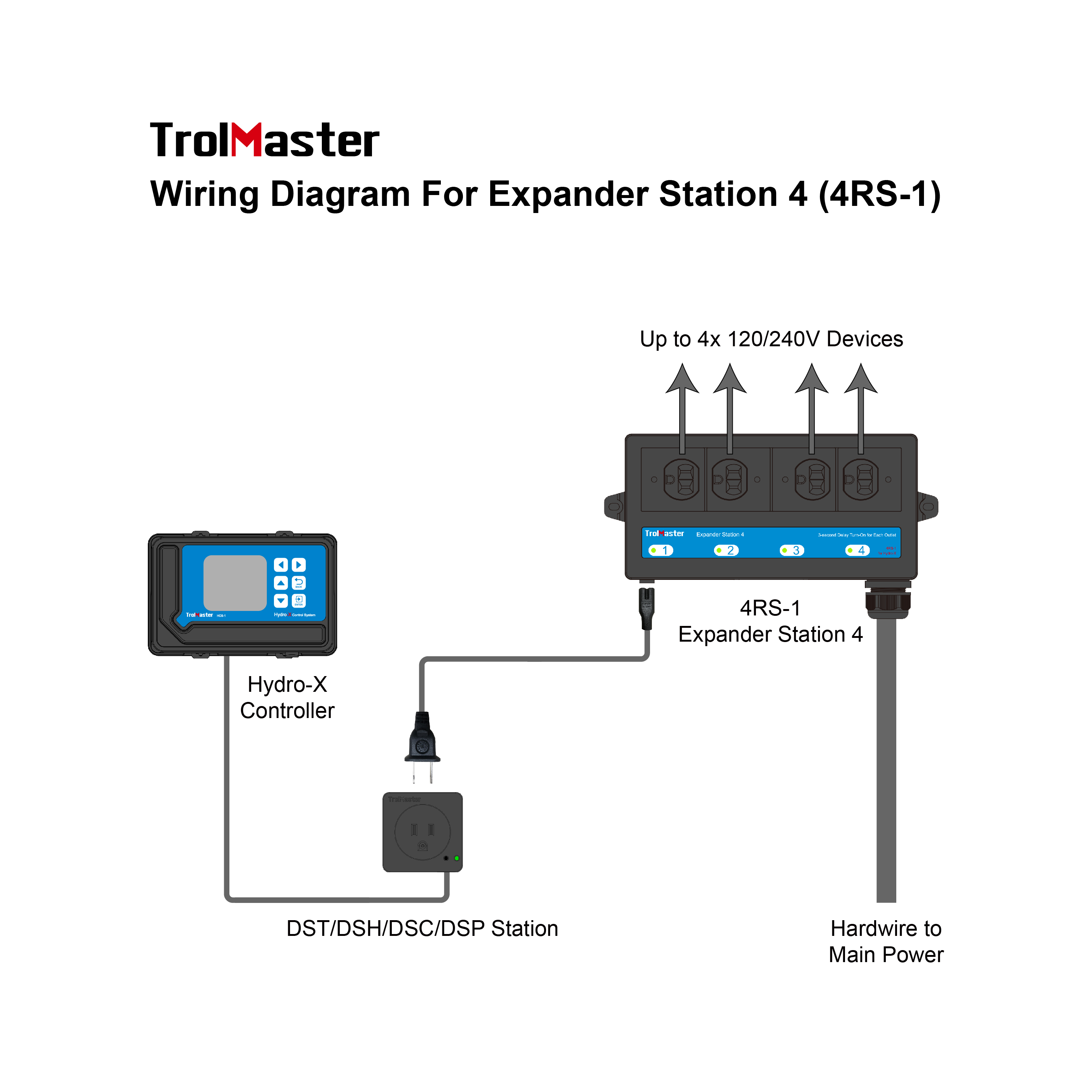

The 4RS-1 is a universal 4-outlet power expansion module. It can be used with any of TrolMaster’s “plug-in” style device modules to expand the number of devices that can be controlled by the Hydro-x. A single 120-240 volt “trigger” cable on the 4RS-1 connects to your device / control module. When the device module is activated by the Hydro-x, the 4RS-1 trigger cable will turn on each of the 4 receptacles on the 4RS-1 with a 3-second time delay between each outlet being activated. That minimizes high start-up (inrush current) and allows up to 4 devices to be safely controlled. The 4RS-1 must be installed with a 120/240 volt power circuit (up to 50-amps @ 240vac). Three wire terminals inside the unit accept up to #6 AWG wire making connections to the power source easy.
* This plug is NOT U.L. or E.T.L listed.
Features & Benefits:
Package Content:
Specification:
The 4RS-1 is a universal 4-outlet power expansion module. It can be used with any of TrolMaster’s “plug-in” style device modules to expand the number of devices that can be controlled by the Hydro-x. A single 120-240 volt “trigger” cable on the 4RS-1 connects to your device / control module. When the device module is activated by the Hydro-x, the 4RS-1 trigger cable will turn on each of the 4 receptacles on the 4RS-1 with a 3-second time delay between each outlet being activated. That minimizes high start-up (inrush current) and allows up to 4 devices to be safely controlled. The 4RS-1 must be installed with a 120/240 volt power circuit (up to 50-amps @ 240vac). Three wire terminals inside the unit accept up to #6 AWG wire making connections to the power source easy.
* This plug is NOT U.L. or E.T.L listed.
Features & Benefits:
- Individual Power Relay (25A for each outlet)
- 3-second Intervals as Time Delay for Reducing Start-Up Surges
Package Content:
- 1 x Expender Station 4
Specification:
- Main Power Voltage: 120V or 240V
- Receptacle Quantity: 4
- Max Relay Amperage: 25A
- Working Temperature: 41-140°F
- Working Humidity: 0-99% Noncondensing
- Package Dimensions: 275mm x 255mm x 95mm
- G.W. per pack: 1.50kgs
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Meters & Monitoring > Controllers & Monitors
- Listed weight: 3.3069366 lbs
- Listed dimensions: 14 x 10 x 7 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRC4RS1
BrandTrolMaster
UPC6970207970540
Weight3.31 lbs
Dimensions14 x 10 x 7 in
Voltage120-240v
Max Devices4
Sensor TypesTemperature, Humidity
Max Amps25A
Compatible WithHydro-X (HCS-1)
TypeModule/Station
