TrolMaster
TrolMaster RJ12 Splitter Hub (SPH-1)
SKU: TRCSPH1
$34.65
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
This item is bulky for its price, so carrier shipping can be higher than expected for distant states. Local pickup is available, and the exact shipping quote is shown before payment.
Quick answer
TrolMaster RJ12 Splitter Hub (SPH-1) should be matched to canopy footprint, mounting height, dimming needs, crop stage, heat load, and controller compatibility.
Best fitGrow spaces where the fixture footprint, power draw, and hanging height fit the actual canopy.
Check before orderingConfirm voltage, plug type, controller compatibility, dimensions, hanging hardware, and room heat management.
Grower tipStart with conservative intensity, then raise output as plants respond. Airflow and distance matter as much as wattage.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description
TrolMaster (SPH-1) RJ12 Splitter Hub

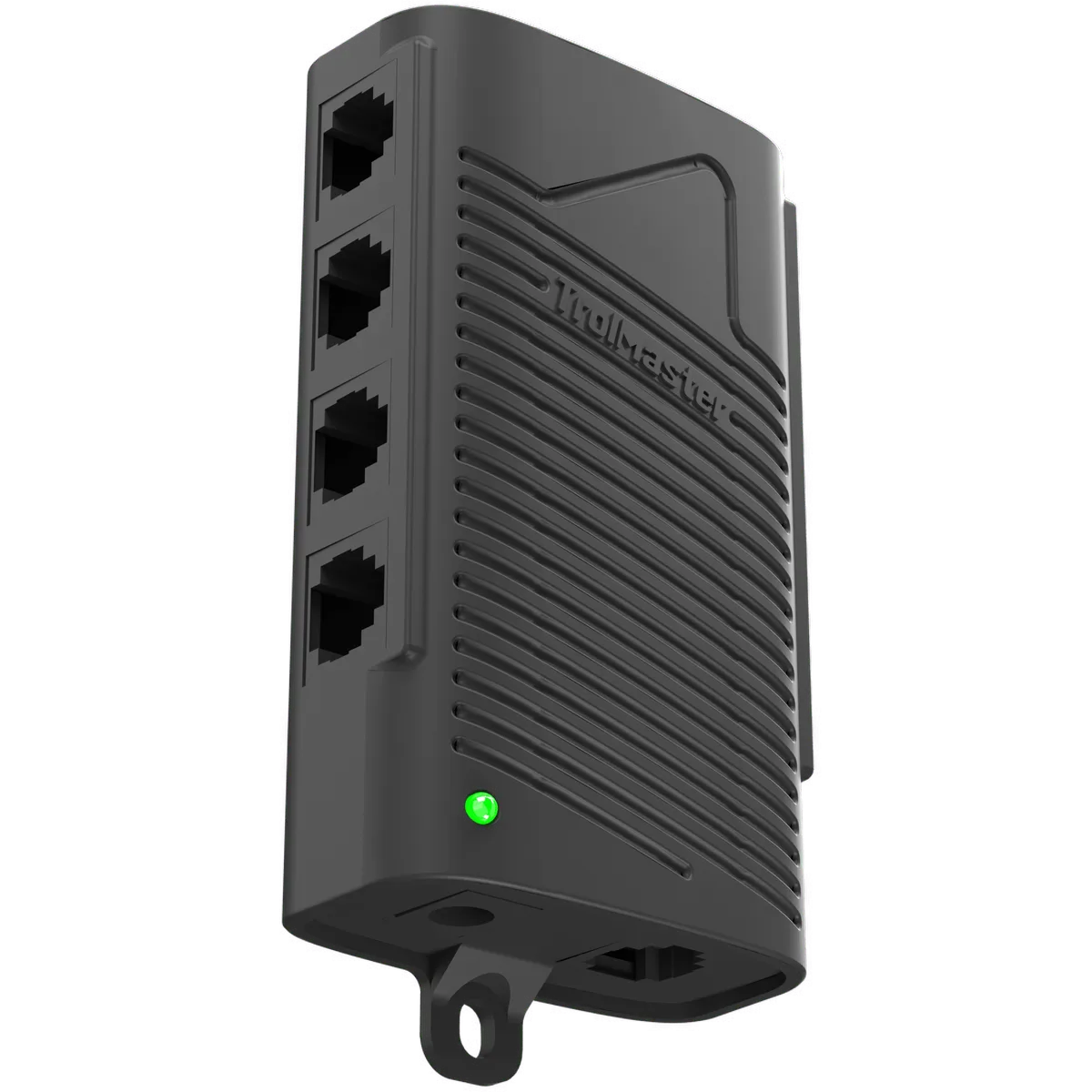

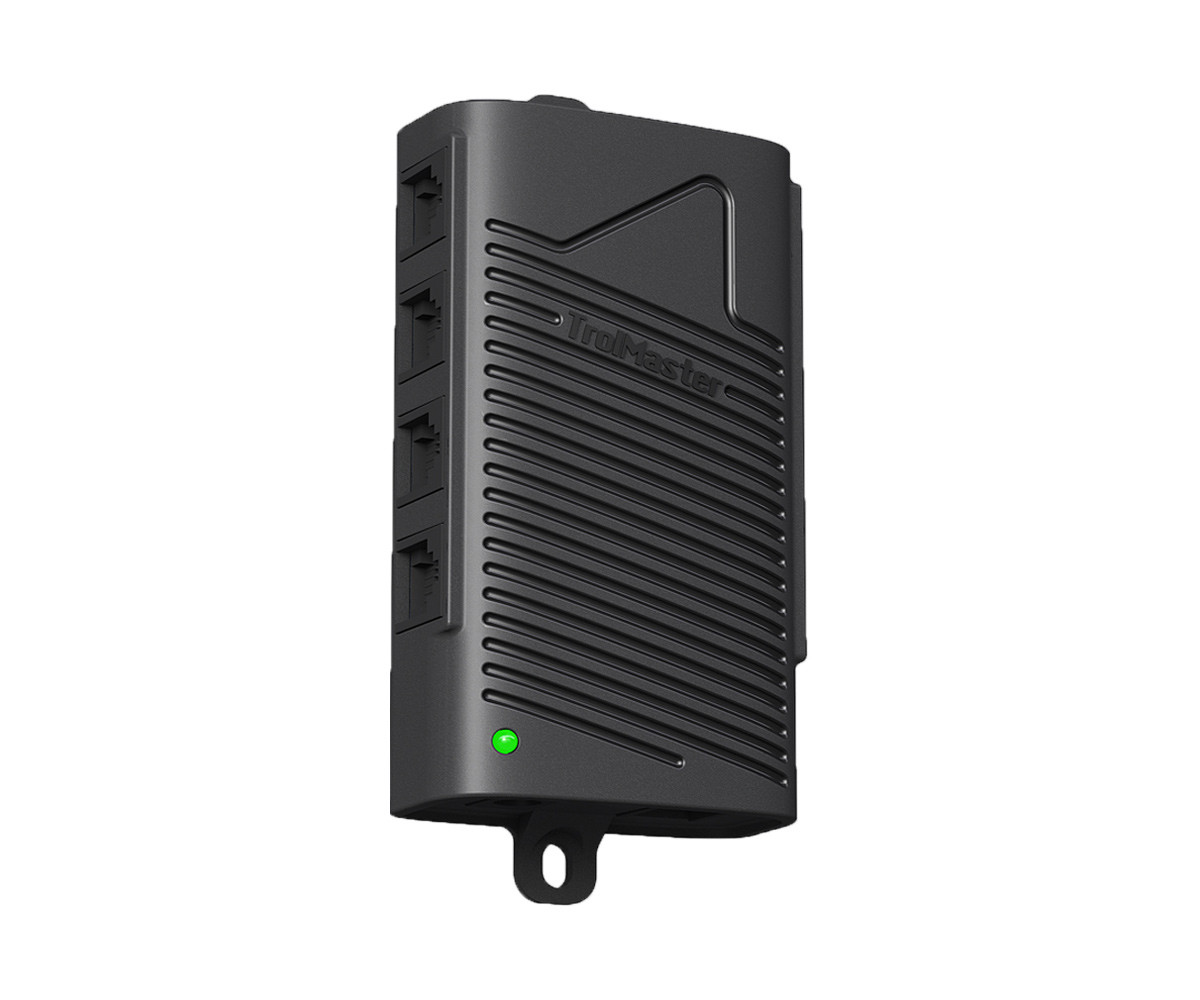

The SPH-1 Splitter Hub from TrolMaster makes the installation of our controllers as easy as plugging in a phone cable. The SPH-1 hub uses a single RJ12 cable input jack, and provides (8) individual RJ12 output jacks that can be connected to various TrolMaster sensors, adapters and device modules. Using the SPH-1 allows for a "clean" installation and eliminates the need for daisy-chain Y-splitters to be used to interconnect multiple modules or sensors.
The SPH-1 is also a powered hub, meaning that it will boost the signals passing through the SPH-1 allowing more modules, sensors and light adapters to be connected to the TrolMaster controllers. By using the SPH-1, an almost unlimited number of LED / HID lights can be controlled using a single TrolMaster controller. The SPH-1 comes complete with the SPH-1 hub, a 16 foot RJ12 cable and the 12vdc power supply.

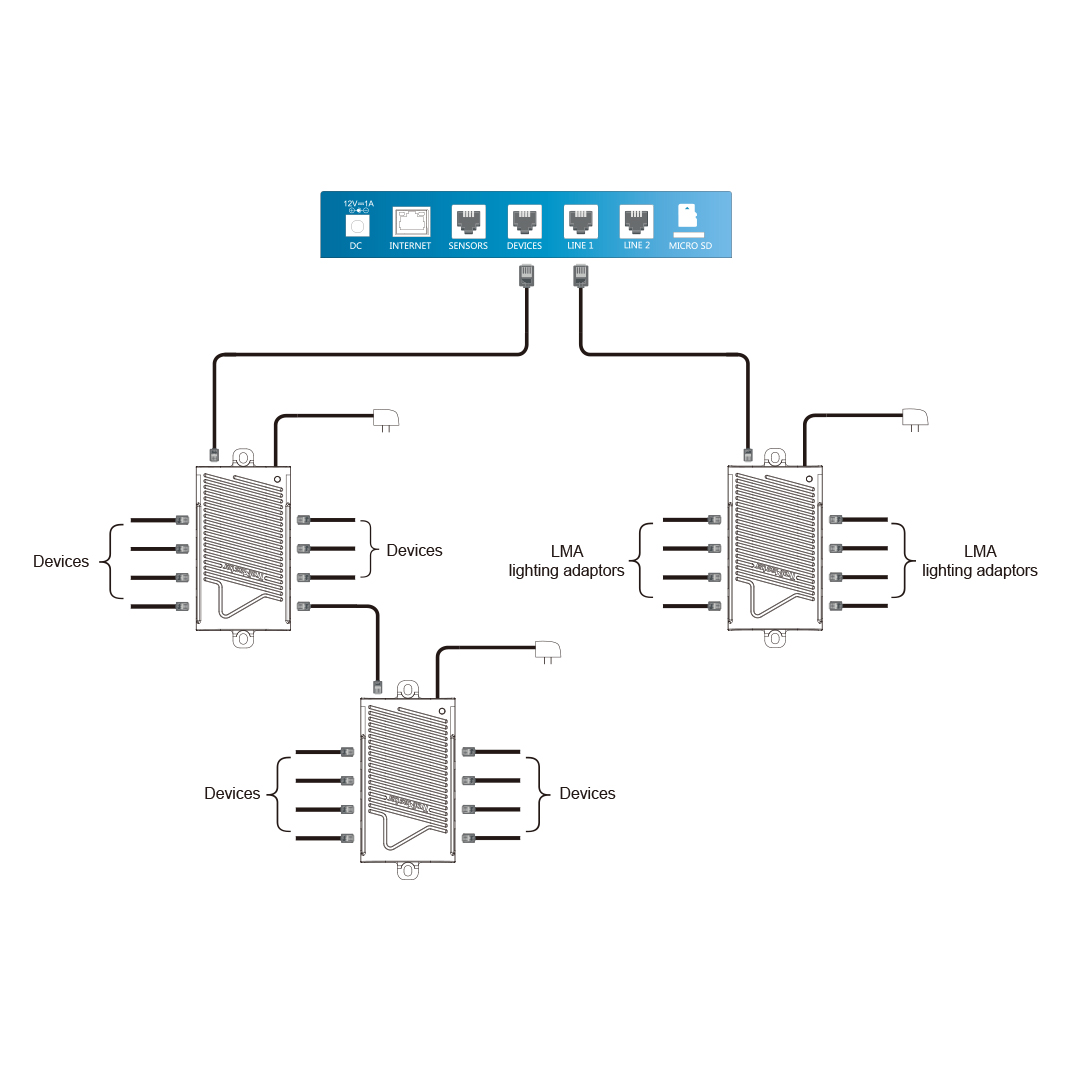

The SPH-1 can be located in a central location with a single RJ12 cable connecting it to the main controller. From the SPH-1 hub, the individual RJ12 jacks can be connected to each of the sensors, device modules, or lighting adapters.
NOTE: If you are using the SPH-1 to interconnect your lighting systems together back to a single LMA adapter (except for LMA-T and ThinkGrow light system), DO NOT connect the 12 volt dc power supply to the SPH-1.
Features & Benefits:
Specification:
The SPH-1 Splitter Hub from TrolMaster makes the installation of our controllers as easy as plugging in a phone cable. The SPH-1 hub uses a single RJ12 cable input jack, and provides (8) individual RJ12 output jacks that can be connected to various TrolMaster sensors, adapters and device modules. Using the SPH-1 allows for a "clean" installation and eliminates the need for daisy-chain Y-splitters to be used to interconnect multiple modules or sensors.
The SPH-1 is also a powered hub, meaning that it will boost the signals passing through the SPH-1 allowing more modules, sensors and light adapters to be connected to the TrolMaster controllers. By using the SPH-1, an almost unlimited number of LED / HID lights can be controlled using a single TrolMaster controller. The SPH-1 comes complete with the SPH-1 hub, a 16 foot RJ12 cable and the 12vdc power supply.
The SPH-1 can be located in a central location with a single RJ12 cable connecting it to the main controller. From the SPH-1 hub, the individual RJ12 jacks can be connected to each of the sensors, device modules, or lighting adapters.
NOTE: If you are using the SPH-1 to interconnect your lighting systems together back to a single LMA adapter (except for LMA-T and ThinkGrow light system), DO NOT connect the 12 volt dc power supply to the SPH-1.
Features & Benefits:
- LED indicator
- Plug & Play
- 1x RJ12 Splitter Hub
- 1x 12V Power Adapter
- 1x 4 ft RJ12 Cable
Specification:
- Input Voltage:12VDC
- Maximum Current:1A
- Working Temperature:32-122°F
- Working Humidity:≤90%
- Packaging Dimensions:160mm(L) x 85mm(W) x 90mm(H)
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Pest & Disease Control > Biological Control
- Listed weight: 0.54 lbs
- Listed dimensions: 24 x 24 x 6 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCSPH1
BrandTrolMaster
UPC6970207971233
Weight0.54 lbs
Dimensions24 x 24 x 6 in
Sold Aseach
Sensor TypesTemperature, Humidity
Max Amps1A
ModelSPH-1
TypeAccessory
Size1x4 ft
Voltage12V
Amperage1A
