TrolMaster

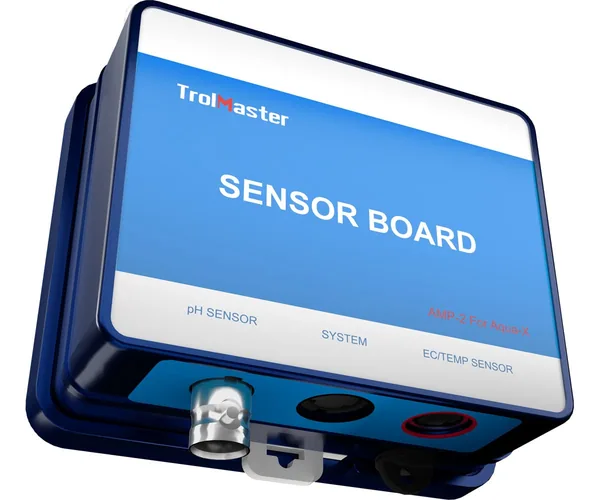

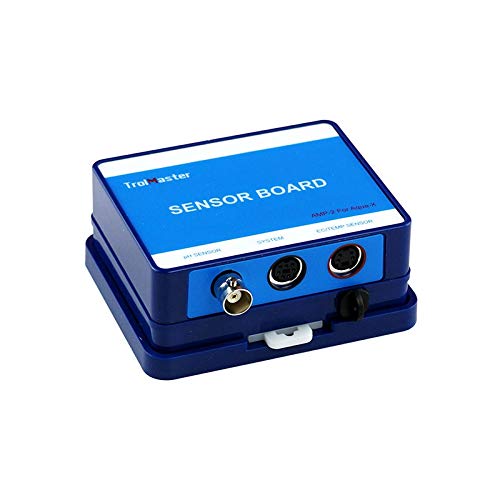

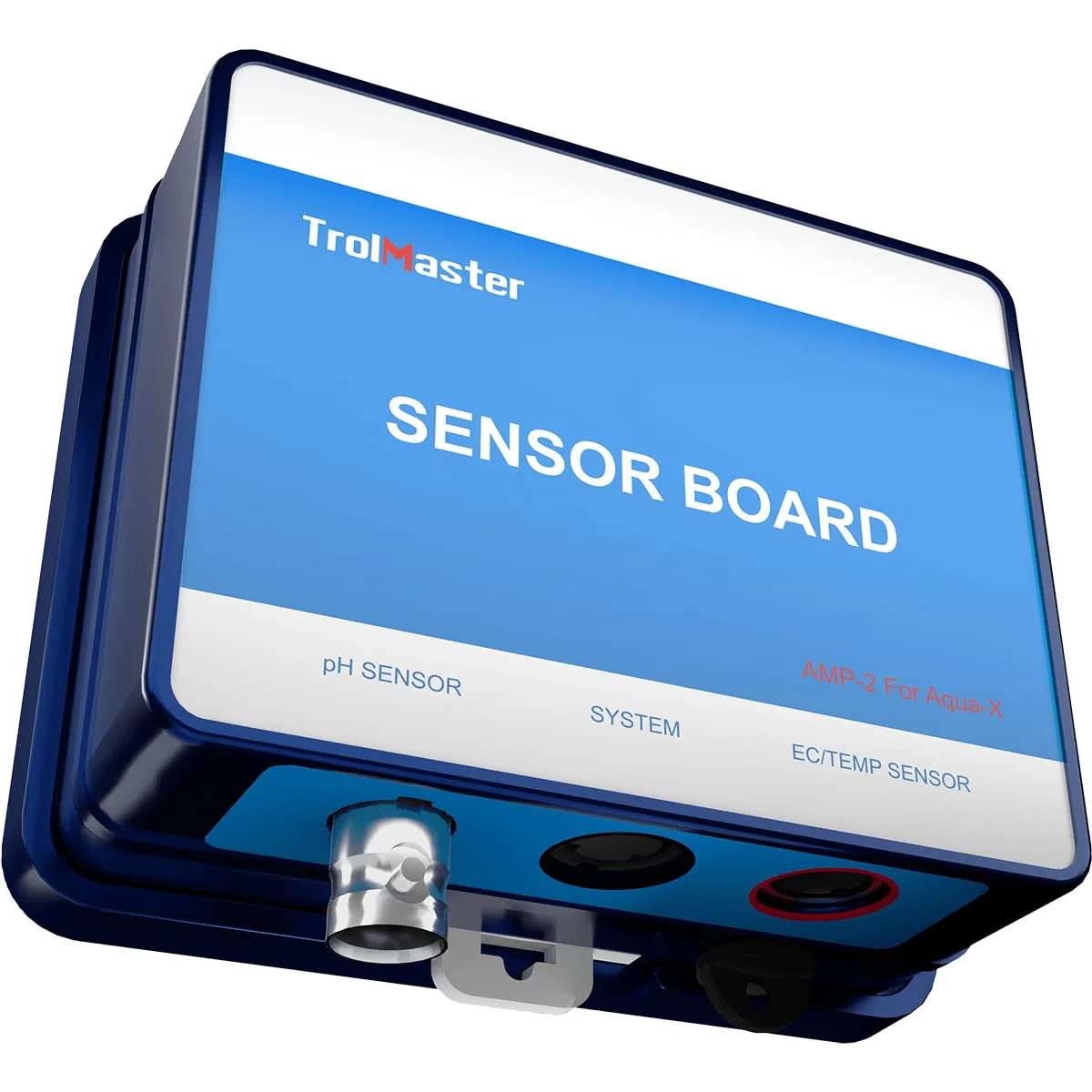

TrolMaster Sensor Board to connect sensors to controller (AMP-2)
SKU: TRCAMP2
$120.75
Available to Order
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Trusted Since 2009
Quick answer
TrolMaster Sensor Board to connect sensors to controller (AMP-2) should be chosen around the reading or equipment being monitored, accuracy range, probes, calibration, and automation needs.
Best fitGrowers matching meters, controls, dosing, or monitoring gear to an existing room or irrigation setup.
Check before orderingConfirm compatible probes, modules, cable lengths, app requirements, replacement parts, and calibration needs.
Grower tipFor compatibility questions, call with the existing equipment model numbers before ordering.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description
TrolMaster (AMP-2) Sensor Board for Aqua-X
TrolMaster's AMP-2 module connects the Aqua-X to a set of precision pH / EC & temperature probes to constantly measure the pH / EC & temperature of the water being sampled. The AMP-2 works with the TrolMaster PCT-1&2 and the PPH-1&2 probes. Once connected to the Aqua-X, the AMP-2 will display the sensor data on the Aqua-x and on the APP. The minimum and maximum “limits” can be set on the Aqua-X providing 24/7 notification of pH / EC or temperatures that are out of limits.
Features & Benefits:
Package Content:
Specification:
TrolMaster's AMP-2 module connects the Aqua-X to a set of precision pH / EC & temperature probes to constantly measure the pH / EC & temperature of the water being sampled. The AMP-2 works with the TrolMaster PCT-1&2 and the PPH-1&2 probes. Once connected to the Aqua-X, the AMP-2 will display the sensor data on the Aqua-x and on the APP. The minimum and maximum “limits” can be set on the Aqua-X providing 24/7 notification of pH / EC or temperatures that are out of limits.
Features & Benefits:
- Simple-to-Use DIN Type Bracket for Easy Installation
- BNC Terminal (left) allows Direct Connection to pH Sensor
- Mini-DIN Terminal (right) allows Direct Connection to EC/Temp Sensor
- Mini-DIN Terminal (middle) allows Direct Connection to Aqua-X Controller

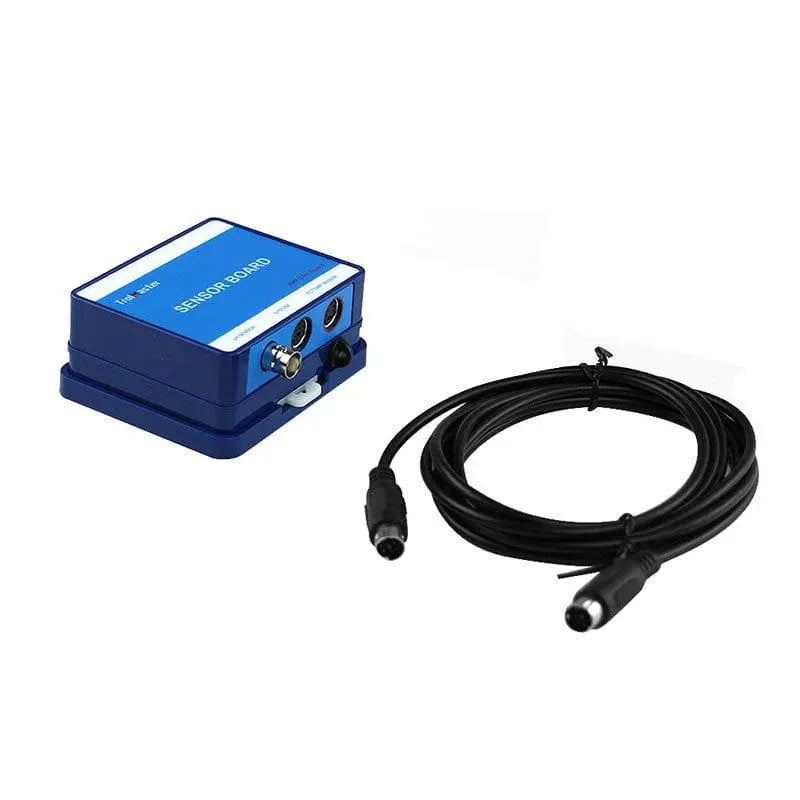

Package Content:
- 1 x Sensor Board
- 1 x 2.5-Meter-Long Signal Cable
Specification:
- Working Temperature: 32-122°F
- Working Humidity: ≤90%
- Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Meters & Monitoring > Controllers & Monitors
- Listed weight: 0.49 lbs
- Listed dimensions: 8 x 4 x 3 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCAMP2
BrandTrolMaster
UPC6970207970588
Weight0.49 lbs
Dimensions8 x 4 x 3 in
Sold Aseach
Sensor TypesTemperature, Humidity, pH, EC/PPM
ConnectivityApp Control
ModelAMP-2
TypeController
Active Ingredient %90%
CategoryControllers & Monitors
