TrolMaster
TrolMaster VFD, Basic Compact Driver for AC Motors Speed Controls (Delta-1)
SKU: TRCDELTA-1
$691.95
Available to Order (9 available)
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm availability, handling timing, or shipping.
Quick answer
TrolMaster VFD, Basic Compact Driver for AC Motors Speed Controls (Delta-1) should be chosen around the equipment it must run, the probes or readings needed, and the level of automation required.
Best fitGrowers matching controls, meters, dosing, or monitoring gear to an existing room or irrigation setup.
Check before orderingConfirm compatible probes, modules, cable lengths, app requirements, voltage, replacement parts, and calibration needs.
Grower tipIf you are matching this to existing equipment, call with the model numbers so compatibility can be checked first.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description

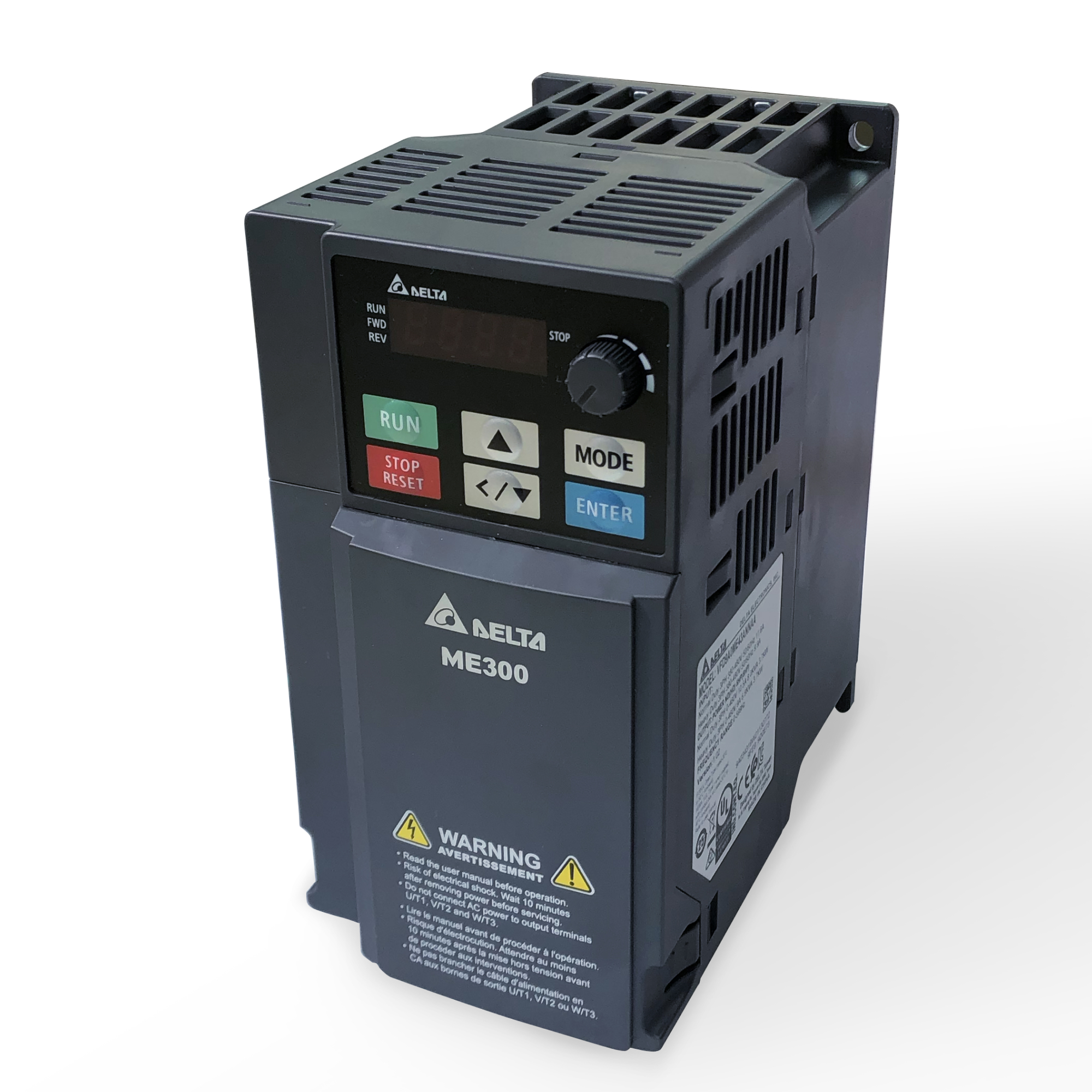

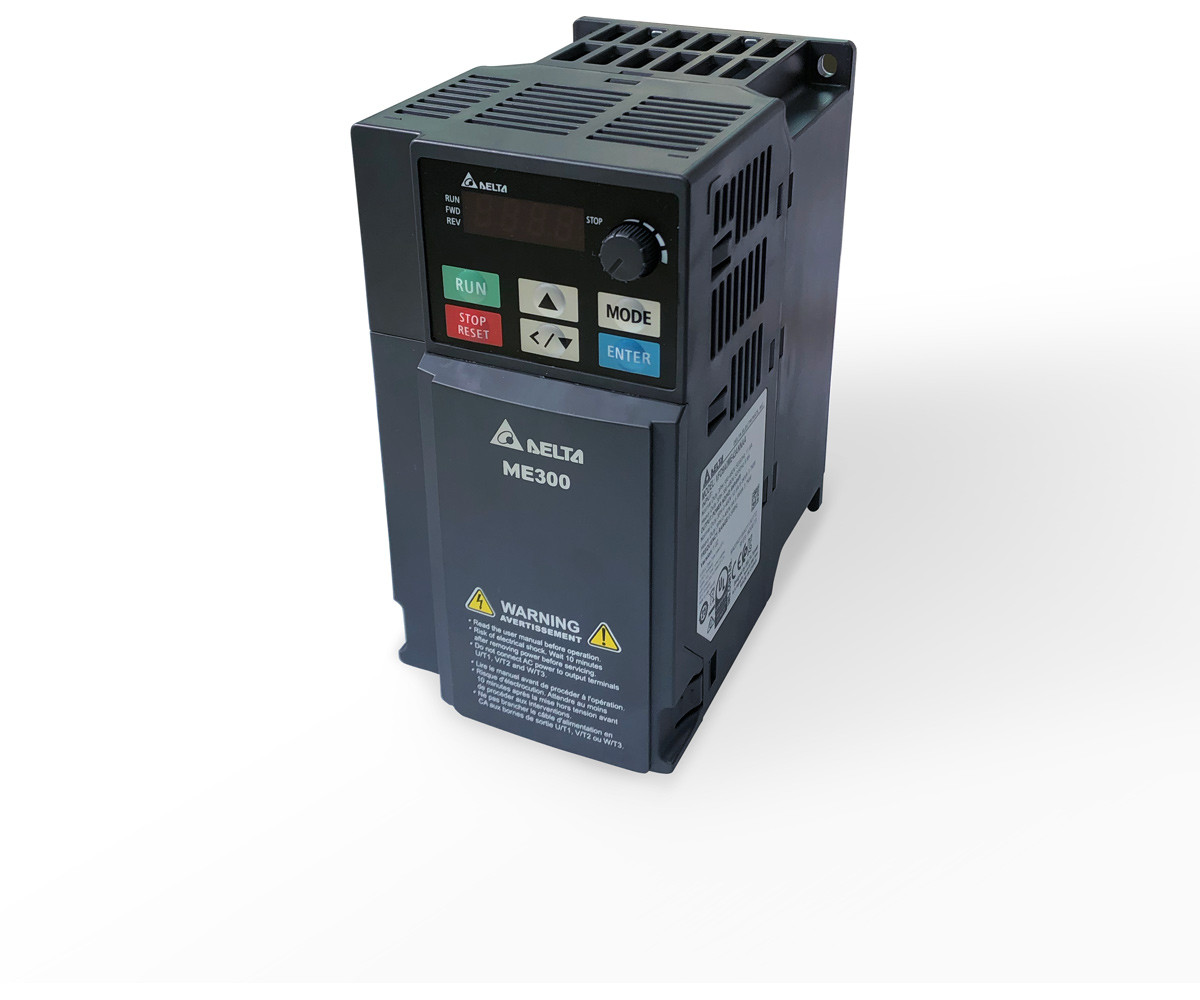

TrolMaster VFD, Basic Compact Driver for AC Motors Speed Controls (Delta-1)
The Delta-1 is one of the possible variable-frequency drive (VFD) that can be used with Trolmaster's VFD-1 module. The Delta-1 and the VFD-1 can be used with the TrolMaster Hydro-X Pro system to control the speed of 3-phase AC motors (industrial fans etc.). An RJ45 cable is included for connecting the Delta-1 with the TrolMaster VFD-1 module. This customized version has all the required parameters preset and ready to be operated with VFD-1 module straight out
of the box.
*VFD drives can only operate 3 phase fans / motors. Single phase motors cannot be used with the VFD-1 or the Delta-1 VFD drive.
Package Content:
The Delta-1 is one of the possible variable-frequency drive (VFD) that can be used with Trolmaster's VFD-1 module. The Delta-1 and the VFD-1 can be used with the TrolMaster Hydro-X Pro system to control the speed of 3-phase AC motors (industrial fans etc.). An RJ45 cable is included for connecting the Delta-1 with the TrolMaster VFD-1 module. This customized version has all the required parameters preset and ready to be operated with VFD-1 module straight out
of the box.
*VFD drives can only operate 3 phase fans / motors. Single phase motors cannot be used with the VFD-1 or the Delta-1 VFD drive.
Package Content:
- 1x DELTA-1
INPUT:
- Normal Duty: 3PH 380-480V 50/60Hz 11.6A
- Heavy Duty: 3PH 380-480V 50/60Hz 9.9A
OUTPUT:
- Power ND(HD) 5HP(5HP)
- Normal Duty: 3PH 0-460V 10.5A 8.0KVA 3.7KW
- Heavy Duty: 3PH 0-460V 9A 6.9KVA 3.7KW
- Frequency Range: 0-599Hz
- IP20/UL Open-Type (rated-20°C to 50°C Ambient)
- NEMA 1/UL Type1 when installed with conduit box kit (rated-20°C to 40°C Ambient)
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Climate Control > Controllers & Monitors
- Listed weight: 3.7 lbs
- Listed dimensions: 8 x 4 x 3 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCDELTA-1
BrandTrolMaster
UPC6970207971837
Weight3.70 lbs
Dimensions8 x 4 x 3 in
Voltage380-480V
Ip RatingIP-20
CertificationsUL
Max Amps11.6A
Compatible WithHydro-X Pro (HCS-2)
TypeModule
