TrolMaster
TrolMaster Water Content Sensor (WCS-1)
SKU: TRCWCS1
$241.50
Available to Order (52 available)
Inventory may be in-store or supplier warehouse. Call 419-725-2450 to confirm same-day pickup.
Quick answer
TrolMaster Water Content Sensor (WCS-1) should be chosen around the equipment it must run, the probes or readings needed, and the level of automation required.
Best fitGrowers matching controls, meters, dosing, or monitoring gear to an existing room or irrigation setup.
Check before orderingConfirm compatible probes, modules, cable lengths, app requirements, voltage, replacement parts, and calibration needs.
Grower tipIf you are matching this to existing equipment, call with the model numbers so compatibility can be checked first.
Shopping guidance from Toledo Indoor Garden. Prices, availability, shipping rates, weights, and dimensions are verified during checkout.
Description

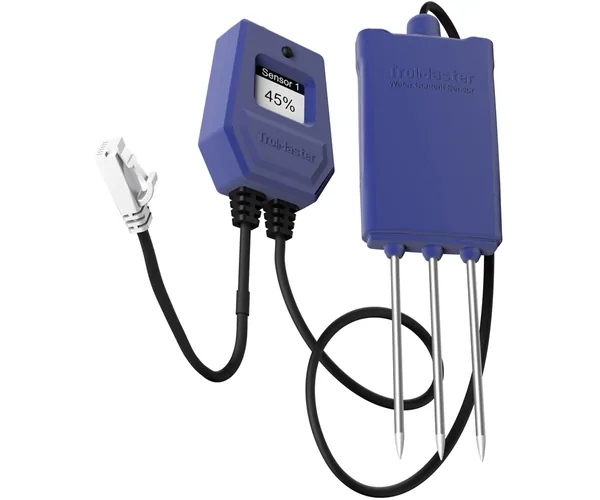

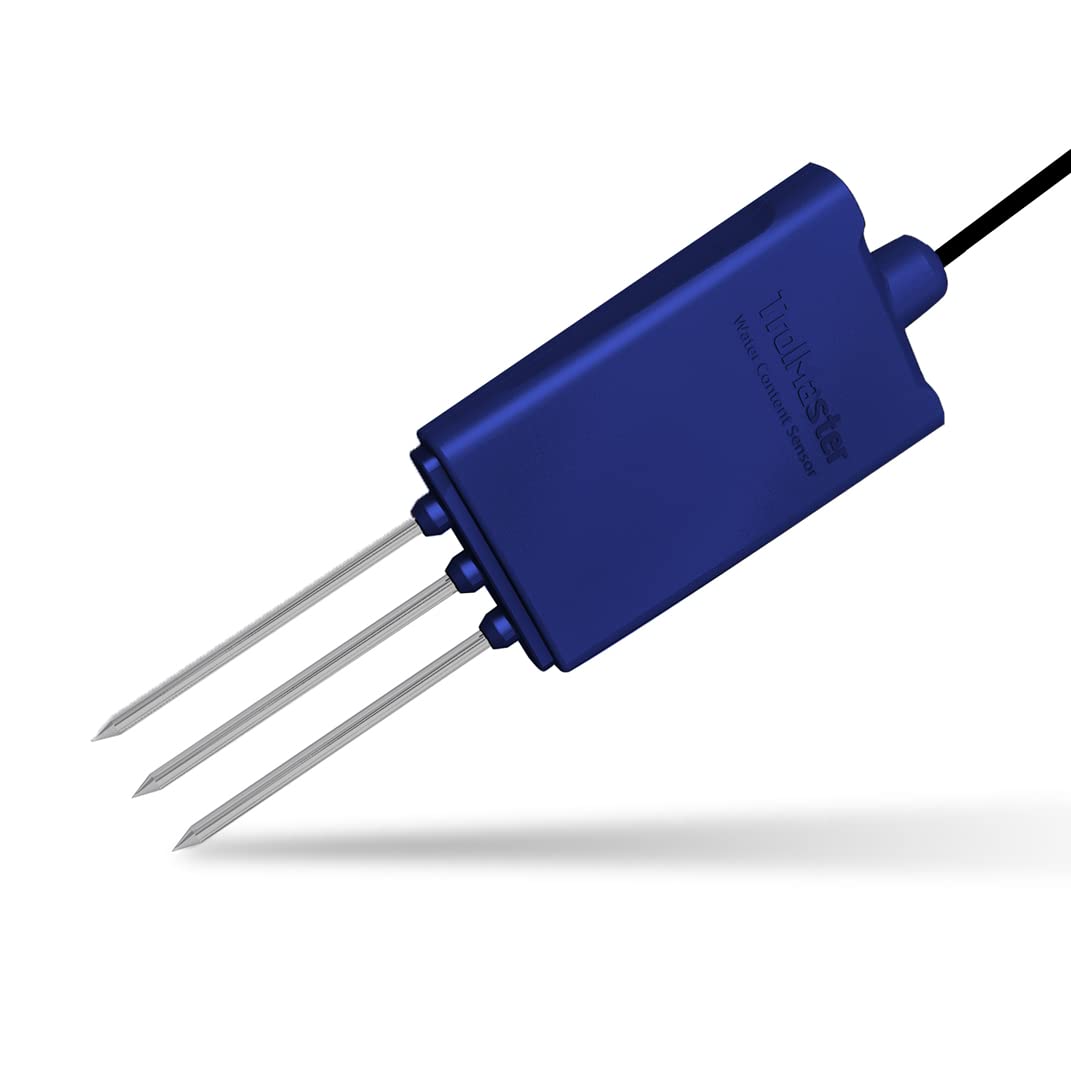

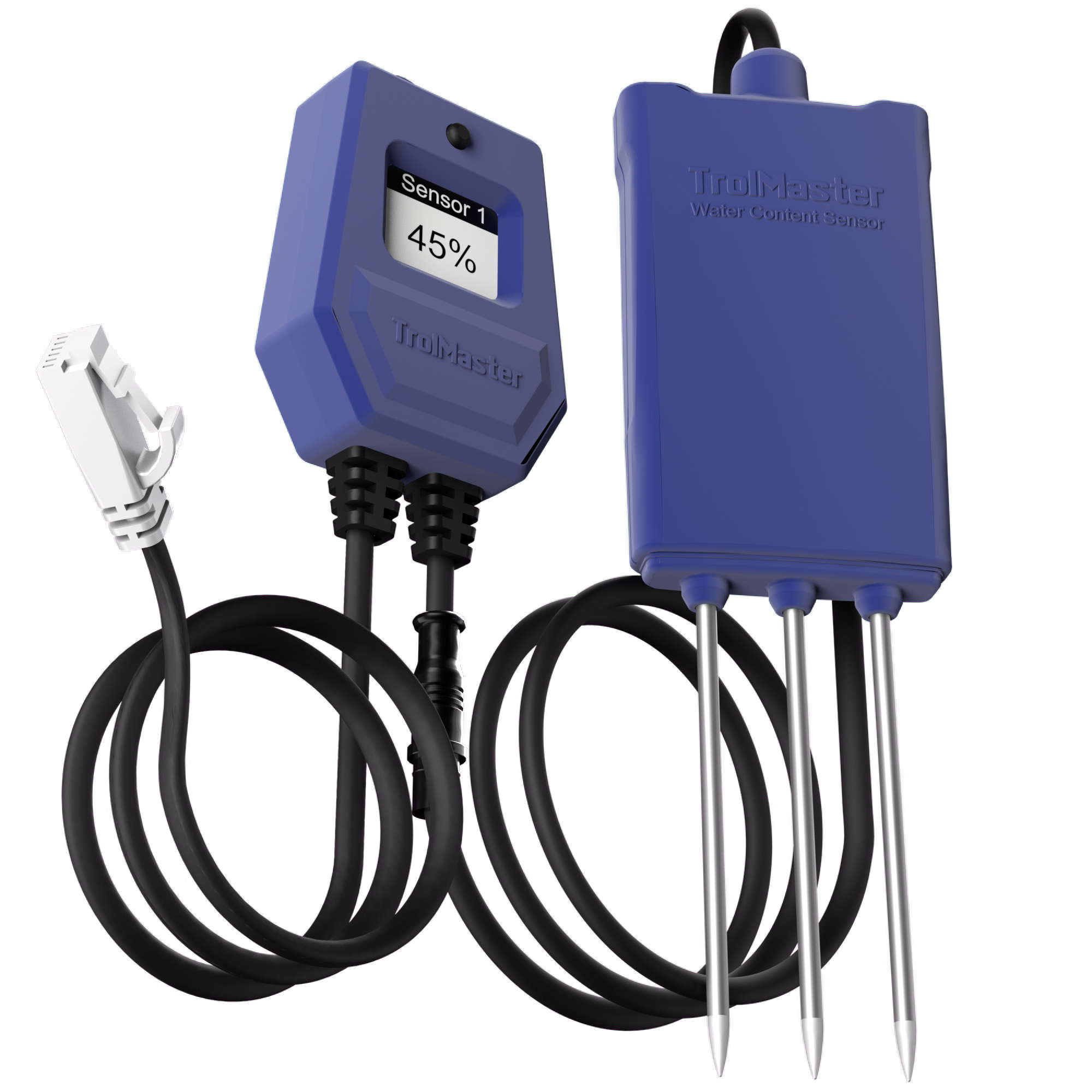

TrolMaster (WCS-1) Water Content Sensor for Aqua-X System
TrolMaster's WCS-1 water content sensor allows the user to monitor the % of water / nutrients within the growing medium. The moisture level / water content is displayed in real-time on the WCS module itself, the Aqua-x (or Hydro-X Pro) and the APP. That data is displayed on a graph (through the APP) and helps the user visualize the dry-down time, and to make adjustments to their irrigation timers / irrigation cycles.
Up to 8 WCS-1 can be connected to a single Aqua-x. When multiple WCS-1 are connected to a single Aqua-X, the displayed value on the Aqua-x and APP will be the AVERAGE of all of the sensors.
Features & Benefits:
Package Content:
Specification:
TrolMaster's WCS-1 water content sensor allows the user to monitor the % of water / nutrients within the growing medium. The moisture level / water content is displayed in real-time on the WCS module itself, the Aqua-x (or Hydro-X Pro) and the APP. That data is displayed on a graph (through the APP) and helps the user visualize the dry-down time, and to make adjustments to their irrigation timers / irrigation cycles.
Up to 8 WCS-1 can be connected to a single Aqua-x. When multiple WCS-1 are connected to a single Aqua-X, the displayed value on the Aqua-x and APP will be the AVERAGE of all of the sensors.
Features & Benefits:
- LCD Display, Easy Operation
- Addressing Button
- Water Content Real-time Measuring Water Content
- Alarm When Setpoint Exceeded
Package Content:
- 1 x Water Content Sensor
- 1 x RJ12 T-Splitter
- 1 x 16ft RJ12 Cable
Specification:
- Input Voltage :12 VDC
- Max Input Current :0.1A
- Working Temperature :32°-122°F
- Working Humidity :≤90%
- Measuring Range :0~100%
- Packaging Dimensions :275mm(L) x 164mm(W) x 62mm(H)
- Genuine TrolMaster product
- Brand: TrolMaster
- Category: Meters & Monitoring > Controllers & Monitors
- Listed weight: 1.41 lbs
- Listed dimensions: 24 x 24 x 6 in
- Review product photos, selected option, specifications, and label directions before ordering
Specifications
SKUTRCWCS1
BrandTrolMaster
UPC6970207970861
Weight1.41 lbs
Dimensions24 x 24 x 6 in
Sensor TypesTemperature, Humidity, Water
ConnectivityApp Control
Max Amps0.1A
Compatible WithHydro-X Pro (HCS-2)
ModelWCS-1
TypeSensor
Size1x16 ft
